ETFE Rod, ETFE Sheet, ETFE Film & ETFE Tube Manufacturer in China
Direct Source for ETFE Plastics in All Forms (Sheet, Rod, Tube, Film) for Aerospace, Chemical and Electrical Applications. Get Competitive Pricing & Fast Delivery.
What is ETFE and ETFE Rod?
ETFE (Ethylene Tetrafluoroethylene) is a super engineering plastic that combines exceptional mechanical strength with outstanding chemical resistance. Unlike traditional fluoropolymers, ETFE offers superior tensile strength, excellent transparency, and remarkable radiation stability, making it the preferred choice for demanding aerospace, chemical processing, and electrical applications.
ETFE rod provides the essential raw material. This semi-finished form of Tefzel® ETFE polymer is supplied as solid round bars or rectangular stock, specifically designed for turning, milling, and drilling into high-performance parts like valve seats, pump gears, and chemical processing equipment. Unlike thin films used for enclosures, our ETFE rod offers the substantial cross-section needed for structural integrity and complex machining.
ETFE Rod Material Properties & Advantages
Need a Plastic That Combines Strength with Chemical Resistance? ETFE Outperforms PTFE and FEP.
ETFE delivers the chemical inertness of fluoropolymers with mechanical properties that exceed traditional options. Compare the performance data below:
| Property | ETFE | PTFE | FEP | PEEK | Unit |
|---|---|---|---|---|---|
| Tensile Strength | 45-52 | 20-35 | 20-25 | 90-100 | MPa |
| Elongation at Break | 200-300 | 200-400 | 300-350 | 30-150 | % |
| Flexural Modulus | 800-1000 | 400-600 | 650-750 | 3600-4000 | MPa |
| Max Service Temp | 150-200 | 260 | 200 | 250 | °C |
| Chemical Resistance | Excellent | Excellent | Excellent | Good | Rating |
| Radiation Resistance | Excellent | Poor | Fair | Good | Rating |
| Transparency | 95% | Opaque | Translucent | Opaque | Light Trans. |
Superior Mechanical Properties
ETFE offers 2-3x higher tensile strength than PTFE and FEP, with excellent impact resistance and dimensional stability.
Outstanding Chemical Inertness
Resistant to acids, bases, solvents, and oxidizing agents. Unaffected by most chemicals at elevated temperatures.
Exceptional Clarity
95% light transmission makes ETFE ideal for architectural glazing and optical applications requiring transparency.
Radiation Stability
Maintains properties under gamma radiation up to 200 Mrad, perfect for nuclear and aerospace applications.
Our Semi-finished ETFE Product Forms & Specifications
We supply ETFE in all standard forms with custom sizing available. All products meet ASTM D3159 specifications.
ETFE Sheet
| Thickness Range | 0.5mm - 25mm |
| Standard Sizes | 1000×1000mm, 1220×2440mm |
| Colors | Natural (Clear), White |
| Tolerance | ±0.1mm (≤5mm), ±2% (>5mm) |

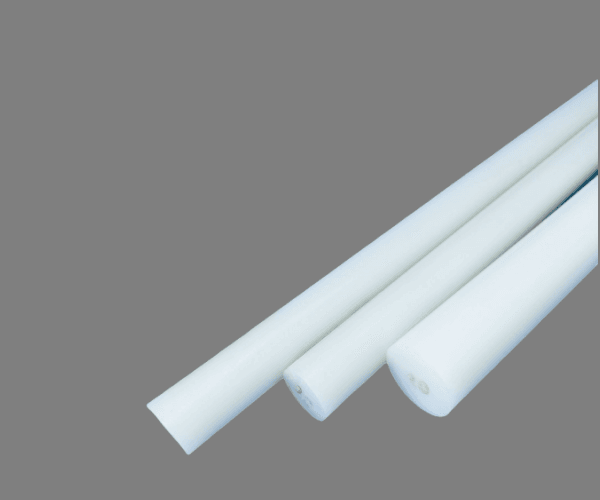

ETFE Rod
| Diameter Range | 6mm - 200mm |
| Standard Length | 1000mm, 2000mm |
| Colors | Natural (Clear), White |
| Tolerance | ±0.1mm (≤50mm), ±0.2mm (>50mm) |

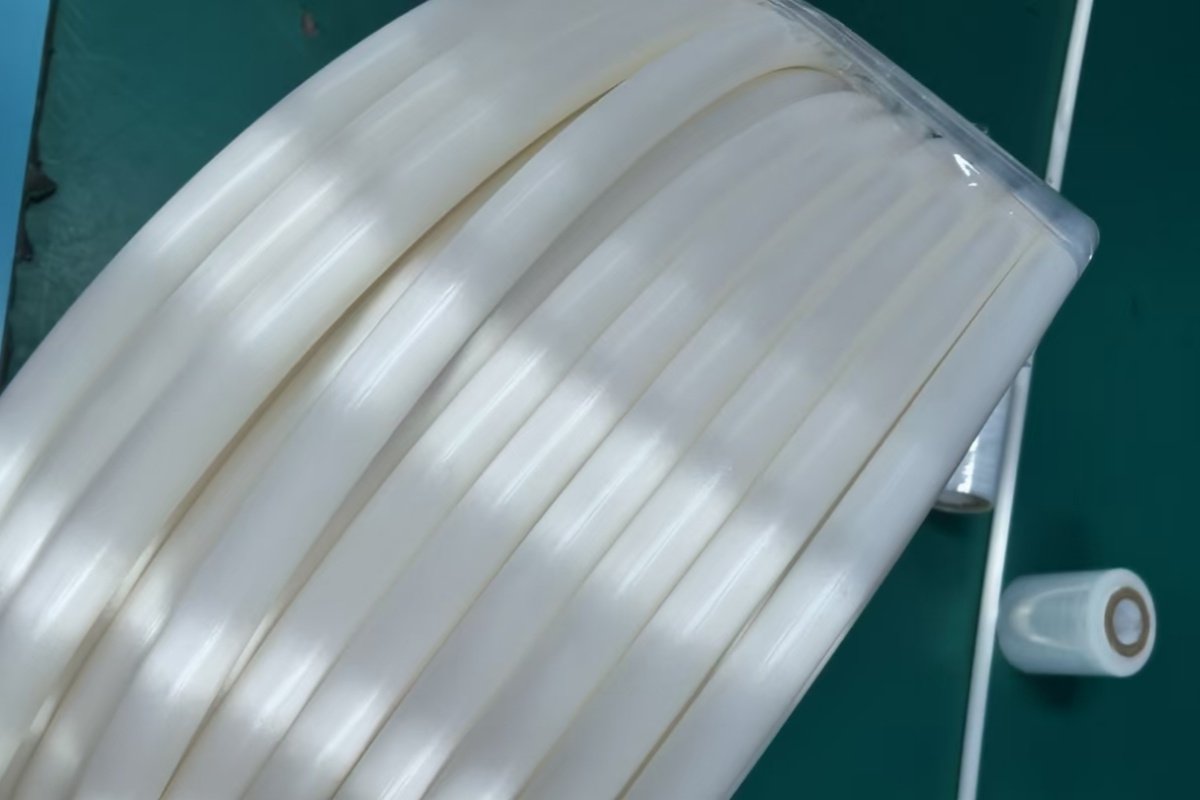

ETFE Tube
| OD Range | 8mm - 150mm |
| Wall Thickness | 1mm - 10mm |
| Standard Length | 1000mm, 2000mm |
| Colors | Natural (Clear), White |

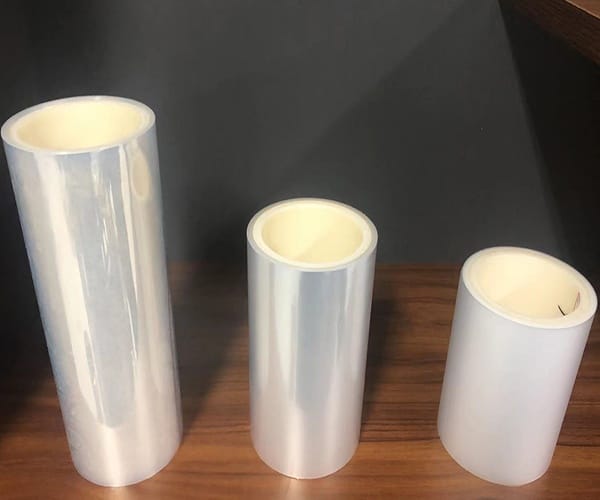

ETFE Film
| Thickness Range | 25μm - 500μm |
| Width | Up to 1500mm |
| Length | Custom rolls |
| Colors | Natural (Clear), Colored |
Key Industrial Applications of ETFE Products
ETFE's unique combination of properties makes it indispensable across multiple high-performance industries:

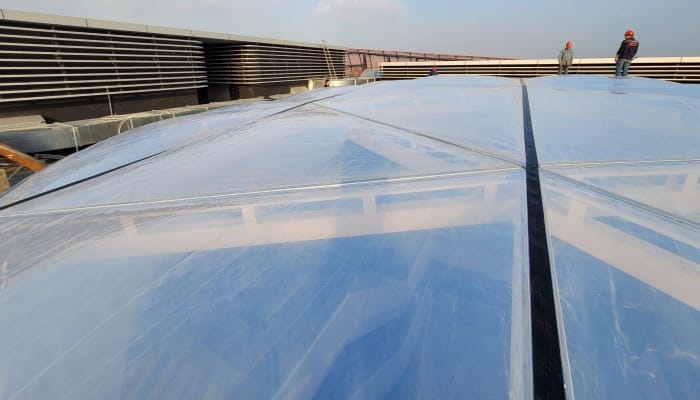

Architectural Membrane Structures
ETFE film provides lightweight, durable roofing solutions with 95% light transmission. Used in stadiums, airports, and botanical gardens worldwide.
- Self-cleaning surface
- 30+ year lifespan
- Excellent UV resistance
- Fire retardant properties

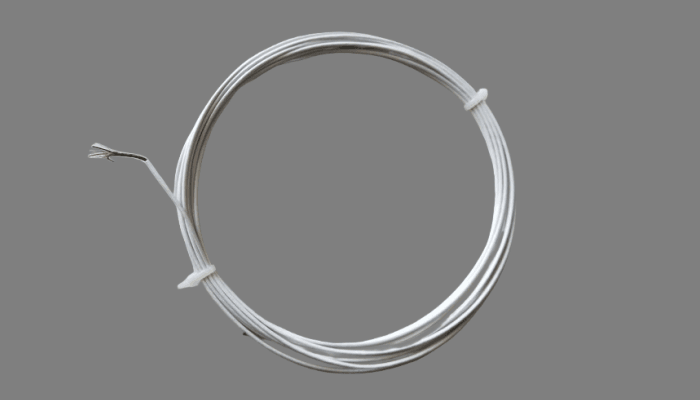

Wire & Cable Insulation
Superior electrical properties combined with flame resistance make ETFE ideal for aerospace and marine cable applications.
- Low smoke toxicity
- Excellent dielectric properties
- Radiation resistant
- Lightweight design

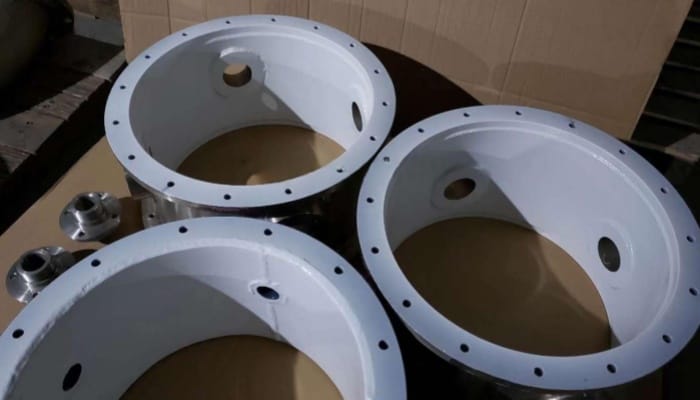

Chemical Processing Equipment
ETFE linings and components resist aggressive chemicals while maintaining structural integrity at elevated temperatures.
- Broad chemical compatibility
- High strength-to-weight ratio
- Thermal cycling resistance
- Easy fabrication

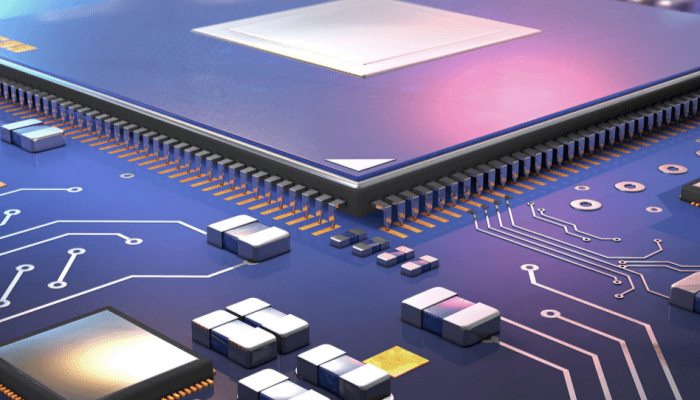

Semiconductor Manufacturing
Ultra-pure ETFE components ensure contamination-free processing in critical semiconductor fabrication environments.
- Ultra-low extractables
- Plasma resistance
- Dimensional stability
- Easy cleaning
Why Choose Us as Your ETFE Stock Shape Supplier?
Direct Factory Supply
We manufacture ETFE products in our ISO 9001:2015 certified facility, ensuring consistent quality and competitive pricing without middleman markups.
Quality Assurance
Every batch undergoes rigorous testing including tensile strength, chemical resistance, and dimensional accuracy verification.
Custom Manufacturing
Our engineering team can produce ETFE components to your exact specifications, including custom colors, sizes, and machined parts.
Global Logistics
Fast delivery worldwide with secure packaging. Stock items ship within 48 hours, custom orders in 2-3 weeks.
Our Certifications & Standards of ETFE Rod
ISO 9001:2015
UL Listed
ASTM D3159
FDA Compliant
Complete ETFE Technical Data
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Density | 1.70 | g/cm³ | ASTM D792 |
| Tensile Strength | 45-52 | MPa | ASTM D638 |
| Elongation at Break | 200-300 | % | ASTM D638 |
| Flexural Modulus | 800-1000 | MPa | ASTM D790 |
| Impact Strength | No Break | J/m | ASTM D256 |
| Hardness | 55-65 | Shore D | ASTM D2240 |
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Melting Point | 260-280 | °C | DSC |
| Glass Transition | -80 | °C | DSC |
| Max Service Temp | 150-200 | °C | Continuous |
| Min Service Temp | -200 | °C | Intermittent |
| Thermal Conductivity | 0.24 | W/m·K | ASTM C177 |
| CTE | 8.3 × 10⁻⁵ | /°C | ASTM D696 |
| Property | Value | Unit | Test Method |
|---|---|---|---|
| Dielectric Constant | 2.6 | - | ASTM D150 |
| Dissipation Factor | 0.0002 | - | ASTM D150 |
| Volume Resistivity | 10¹⁶ | Ω·cm | ASTM D257 |
| Dielectric Strength | 80 | kV/mm | ASTM D149 |
| Arc Resistance | 300+ | seconds | ASTM D495 |
| Chemical | Concentration | Temperature | Resistance |
|---|---|---|---|
| Hydrochloric Acid | 37% | 100°C | Excellent |
| Sulfuric Acid | 98% | 150°C | Excellent |
| Nitric Acid | 70% | 100°C | Excellent |
| Sodium Hydroxide | 50% | 100°C | Excellent |
| Chlorine Gas | 100% | 150°C | Excellent |
| Organic Solvents | Various | RT-100°C | Excellent |
Frequently Asked Questions About Semi-finished ETFE products
What makes ETFE different from other fluoropolymers?
+ETFE combines the chemical resistance of fluoropolymers with superior mechanical properties. It offers 2-3x higher tensile strength than PTFE/FEP, excellent transparency (95% light transmission), and outstanding radiation resistance - properties that make it unique among fluoropolymers.
Can ETFE be welded or bonded?
+Yes, ETFE can be thermally welded using hot air, heated tool, or ultrasonic welding techniques. It can also be bonded using specialized adhesives or mechanical fastening methods. Our technical team can provide welding parameters and procedures.
What is the maximum thickness available for ETFE sheet?
+We stock ETFE sheets up to 25mm thickness in standard sizes. For thicker sections or custom dimensions, we can manufacture to order. Lead times for custom thicknesses are typically 3-4 weeks.
Is ETFE suitable for food contact applications?
+Yes, ETFE meets FDA 21 CFR 177.1550 requirements for food contact applications. It's non-toxic, has low extractables, and maintains its properties during repeated sterilization cycles, making it ideal for food processing equipment.
How does ETFE perform in outdoor applications?
+ETFE has excellent UV resistance and weatherability. It maintains its properties after 20+ years of outdoor exposure without significant degradation. The self-cleaning surface reduces maintenance requirements in architectural applications.
What machining capabilities do you offer for ETFE?
+We provide complete machining services including turning, milling, drilling, and threading. ETFE machines well with sharp tools and proper cooling. We can produce complex geometries, valve seats, gaskets, and custom components to your specifications.
