PCTFE Material: Ultra-High Barrier & Transparent Fluoropolymer Solutions
As a leading PCTFE material(Polychlorotrifluoroethylene) manufacturer, we provide comprehensive Kel-F® equivalent materials including semi-finished PCTFE products, high-clarity PCTFE films, precision molded PCTFE components, and custom PCTFE parts. Ideal for pharmaceutical packaging, aerospace, and chemical processing applications.
What is PCTFE Material(Polychlorotrifluoroethylene)?
PCTFE (Polychlorotrifluoroethylene), also known commercially as Kel-F®, is a specialty fluoropolymer that offers exceptional moisture barrier properties combined with excellent optical clarity. Among all transparent plastics, PCTFE exhibits the lowest water vapor transmission rate, making it the material of choice for critical moisture-sensitive applications.
Our PCTFE products are manufactured to meet the highest purity standards, suitable for pharmaceutical, aerospace, chemical processing, and optical applications. We offer both virgin-grade PCTFE materials and custom-compounded grades PCTFE materials to meet specific application requirements.
Key Characteristics of PCTFE Material
Ultimate Moisture Barrier
Water vapor transmission rate below 0.1 g/m²/24h - the lowest among all transparent plastics. Ideal for protecting moisture-sensitive pharmaceutical and electronic products.
Superior Chemical Resistance
Resistant to strong acids, alkalis, and most organic solvents. PCTFE maintains its properties in harsh chemical environments where other plastics would degrade.
High Optical Clarity
Light transmittance exceeding 90%, combined with low refractive index variation. Suitable for optical windows, lenses, and applications requiring visual inspection.
Excellent Mechanical Properties
High hardness, low creep, and excellent dimensional stability. PCTFE components maintain tight tolerances even under continuous load and temperature cycling.
Wide Temperature Range
Continuous service temperature from -200°C to +120°C. Maintains mechanical and barrier properties across extreme temperature variations.
Outstanding Gas Barrier
Low permeability to oxygen, nitrogen, and other gases. Essential for preserving pharmaceutical products and extending shelf life in critical packaging applications.
Primary Applications of PCTFE Material
Where PCTFE's unique properties deliver critical performance advantages
Pharmaceutical Packaging
PCTFE blister packaging films, PCTFE drug containers, PCTFE vial closures, and PCTFE medical device packaging. PCTFE's ultra-low moisture permeability protects sensitive APIs and biologics from degradation.
Aerospace & Defense
PCTFE seals, PCTFE gaskets, PCTFE O-rings, and specialized PCTFE components for aircraft and spacecraft. PCTFE's low outgassing and wide temperature range are critical for vacuum and space applications.
Chemical Processing
PCTFE sight glasses, PCTFE valve seats, PCTFE pump components, and PCTFE process equipment parts. PCTFE's chemical resistance and optical clarity enable visual monitoring of aggressive chemical processes.
Optical Instruments
PCTFE optical windows, PCTFE lenses, PCTFE light guides, and PCTFE laser components. PCTFE's high transparency and low refractive index make it ideal for precision optical applications.
Electronics & Electrical
PCTFE insulators, PCTFE connectors, PCTFE cable jacketing, and PCTFE moisture barriers for sensitive electronics. PCTFE protects electronic components from moisture and environmental contamination.
Cryogenic Applications
PCTFE seals, PCTFE gaskets, and PCTFE components for ultra-low temperature applications. PCTFE maintains flexibility and sealing performance down to -200°C where other materials become brittle.
Our PCTFE Product Lines
Comprehensive PCTFE solutions from semi-finished materials to custom-engineered components
Semi-Finished PCTFE Products
PCTFE sheets, PCTFE rods and PCTFE tubes are available in various specifications. These semi-finished products possess excellent machinability and are suitable for manufacturing seals, insulating components and chemical equipment assemblies. The material complies with pharmaceutical and food contact standards.
Available PCTFE Forms & Specifications:
- PCTFE Sheets - Thicknesses from 0.5mm to 50mm, custom sizes available
- PCTFE Rods - Diameters from 3mm to 200mm for precision machining
- PCTFE Tubes - Various OD/ID dimensions for fluid handling systems
- Natural & Filled Grades - Virgin PCTFE and specialized compounds
- High purity medical and pharmaceutical grades available
- Complete material certifications including FDA compliance documentation
- Excellent machinability for tight-tolerance components

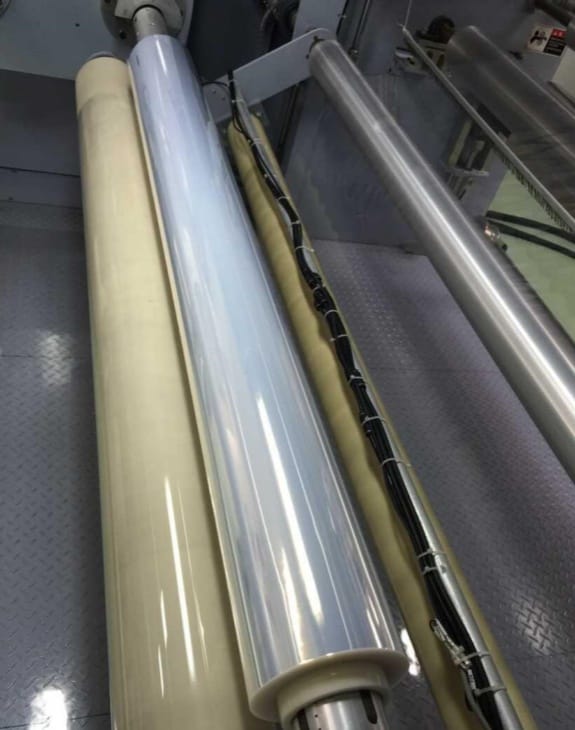

PCTFE Film
Specializing in the production of high-transparency PCTFE film with exceptionally low water vapour transmission rates. Widely utilised in pharmaceutical blister packaging, electronic component protection and specialised packaging applications. Customised products available in various thicknesses and specifications.
PCTFE Film Solutions:
- Pharmaceutical Blister Films - Ultra-low WVTR for drug protection
- Transparent Barrier Films - 90%+ optical clarity with moisture blocking
- Electronics Protection Films - Moisture barrier for sensitive components
- Lamination Films - For multi-layer barrier packaging structures
- Thickness range: 25 microns to 500 microns
- Custom widths and roll lengths available
- FDA compliant for direct food and drug contact

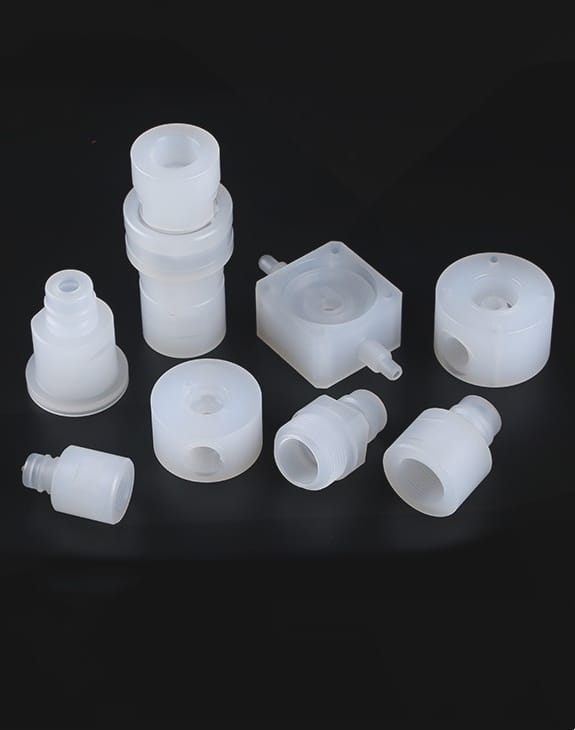

PCTFE Molded Products
Complex PCTFE components manufactured via injection moulding and compression moulding processes. Products encompass valve assemblies, seals, insulating components and more, finding extensive application across the chemical, power generation and semiconductor industries.
Molded PCTFE Components:
- Valve Components - Seats, stems, and sealing elements for chemical valves
- Seals & Gaskets - O-rings, custom-profile seals, flat gaskets
- Electrical Insulators - High-performance connectors and standoffs
- Pump Parts - Diaphragms, impellers, and wear components
- Compression molding and injection molding capabilities
- Complex geometries and tight tolerances achievable
- Prototype to production volume manufacturing
Custom PCTFE Parts
We provide professional custom machining services for PCTFE components. Utilising CNC machining and other processes, we manufacture high-precision parts according to customer drawings. Suitable for bespoke requirements across various specialised applications.
Custom Machining Services:
- CNC Precision Machining - Multi-axis machining for complex geometries
- Optical Component Fabrication - Polished windows, lenses, and prisms
- Custom Sealing Solutions - Application-specific seal designs and fabrication
- Prototype Development - Rapid prototyping from concept to finished part
- Tolerances to ±0.005mm achievable
- Surface finishes from machine finish to optical polish
- Design consultation and material selection support
- Small batch to volume production capabilities
Technical Parameters of PCTFE Material
Typical material properties and test standards for PCTFE (Kel-F®)
| Performance Indicator | PCTFE Typical Value | Test Standard |
|---|---|---|
| Water Vapor Transmission Rate | <0.1 g/m²/24h | ASTM E96 |
| Tensile Strength | 35-45 MPa | ASTM D638 |
| Light Transmittance | >90% | ASTM D1003 |
| Continuous Service Temperature | -200°C to +120°C | - |
| Tensile Modulus | 1400-1700 MPa | ASTM D638 |
| Elongation at Break | 100-200% | ASTM D638 |
| Density | 2.12-2.18 g/cm³ | ASTM D792 |
| Rockwell Hardness | R80-R95 | ASTM D785 |
| Oxygen Permeability | <5 cc/m²/24h | ASTM D3985 |
| Dielectric Strength | 60-80 kV/mm | ASTM D149 |
| Coefficient of Friction | 0.3-0.4 | ASTM D1894 |
| Melting Point | 210-220°C | DSC |
Quality Certifications & Compliance of PCTFE Material
Our commitment to quality and regulatory compliance
ISO 9001:2015
Quality Management System certification ensuring consistent product quality and continuous improvement processes.
FDA Compliance
PCTFE materials meet FDA 21 CFR 177.1010 requirements for direct food and pharmaceutical contact applications.
RoHS Compliant
All PCTFE products comply with RoHS directive for restricted hazardous substances in electrical and electronic equipment.
REACH Compliant
Full compliance with EU REACH regulation for chemical substance registration and safety documentation.
Material Test Reports
A comprehensive material inspection report is provided for each batch, including mechanical properties, barrier performance and purity analysis data.
Full Traceability
Complete material traceability from raw material sourcing through production to final product delivery.
Why Choose B&C for PCTFE Material & Products
Your trusted partner for Kel-F®-equivalent PCTFE solutions in China
20+ Years PCTFE Expertise
Extensive experience in PCTFE processing, compounding, and fabrication. Our technical team provides expert guidance for your specific application requirements.
Guaranteed Material Quality
100% virgin PCTFE resins with complete certifications. Every batch tested for barrier properties, mechanical performance, and purity to ensure consistent quality.
Custom Solution Development
From material selection to final part design, we work closely with your team to develop optimized PCTFE solutions for your unique application challenges.
Competitive Pricing
Direct manufacturer pricing without intermediary markups. Volume discounts and flexible terms available for large projects and ongoing supply agreements.
Fast Turnaround Times
Stock materials ship within 3-5 days. Custom parts and specialized products manufactured with industry-leading lead times to meet your project schedules.
Comprehensive Technical Support
Pre-sales consultation, material selection guidance, design review, and post-delivery support. Our engineers are available to assist throughout your project lifecycle.
Frequently Asked Questions About PCTFE Polymer
Common questions about PCTFE materials and applications
What is the difference between PCTFE and Kel-F®?
+PCTFE (Polychlorotrifluoroethylene) is the generic name for the fluoropolymer, while Kel-F® is a registered trademark of 3M Company for their PCTFE products. Our PCTFE materials are chemically equivalent to Kel-F® and meet the same ASTM D3275 specifications. We offer Kel-F®-equivalent PCTFE with identical performance characteristics at more competitive pricing.
Why is PCTFE the best moisture barrier material?
+PCTFE exhibits the lowest water vapor transmission rate (WVTR) among all transparent plastics, typically below 0.1 g/m²/24h. This is due to its dense molecular structure with chlorine atoms that create an exceptional barrier to moisture penetration. For pharmaceutical products sensitive to moisture degradation, PCTFE blister films provide superior protection compared to PVC, PVDC, or other barrier materials.
Can PCTFE be used for pharmaceutical packaging?
+Yes, PCTFE is widely used in pharmaceutical packaging applications. Our pharmaceutical-grade PCTFE meets FDA 21 CFR 177.1010 requirements for direct drug contact. PCTFE blister films are particularly valuable for moisture-sensitive medications, where superior barrier properties are critical for maintaining drug stability and extending shelf life. We provide complete documentation including USP Class VI testing for pharmaceutical applications.
How does PCTFE compare to PTFE?
+While both are fluoropolymers, PCTFE offers several distinct advantages over PTFE: 1) PCTFE is transparent while PTFE is opaque; 2) PCTFE has much better dimensional stability and lower creep; 3) PCTFE exhibits superior moisture and gas barrier properties; 4) PCTFE is harder and has higher mechanical strength. However, PTFE offers higher temperature resistance (up to 260°C vs 120°C for PCTFE) and slightly better chemical resistance. Material selection depends on your specific application requirements.
What machining capabilities do you offer for PCTFE?
+We offer comprehensive PCTFE machining services including CNC milling, turning, drilling, and precision grinding. PCTFE machines very well with sharp carbide tools and proper cutting parameters. We can achieve tolerances to ±0.005mm and surface finishes from standard machine finish to optical polish. For optical components, we provide specialized polishing to achieve >90% light transmission. Our engineering team can assist with design for manufacturability to optimize your PCTFE components for production.
What is the lead time for custom PCTFE parts?
+Lead times depend on part complexity and order quantity. Standard semi-finished PCTFE materials (sheets, rods, tubes) typically ship within 3-5 business days from our inventory. Custom machined parts generally require 2-4 weeks depending on complexity and quantity. Molded PCTFE components with new tooling typically require 6-8 weeks including tool fabrication. For urgent requirements, we offer expedited service with accelerated production schedules. Contact us with your specific requirements for accurate lead time quotations.
