ETFE Wire & ETFE Cable Jacketing Manufacturer | Cut Weight & Boost Durability
Specification Grade ETFE (Tefzel®) for Wire Coating that Demands Extreme Abrasion Resistance, Low Smoke and Flame Retardancy. MIL-P-46180 Compliant.
Superior Performance for Demanding Cable Applications
ETFE cable jacket delivers unmatched protection in the most challenging environments
Extreme Abrasion Resistance
Superior cut and wear resistance protects critical wiring in high-vibration aerospace and robotics applications.
UL 94 V-0 Flame Retardancy
Self-extinguishing properties meet the strictest fire safety requirements for aerospace and marine applications.
Low Smoke Zero Halogen
Minimal smoke and toxic gas emission ensures safety in confined spaces and critical infrastructure.
Wide Temperature Range
Operates reliably from -200°C to +150°C, maintaining flexibility and strength in extreme conditions.
Why Engineers Specify ETFE for Critical Wiring
Reducing System Weight Without Compromising Protection
- Traditional cable jackets add unnecessary weight
- Thick insulation reduces payload capacity
- Heavy wiring increases fuel consumption
ETFE Solution: Thin Wall, Maximum Strength
- 50% thinner walls with superior protection
- Up to 40% weight reduction vs. traditional materials
- Higher tensile strength allows minimal thickness
Ensuring Safety with Low Smoke and Toxicity
- PVC cables release toxic hydrogen chloride
- Dense smoke impairs visibility during emergencies
- Halogenated materials corrode electronics
ETFE Solution: Clean Burning, Minimal Toxicity
- NASA low-toxicity approved materials
- Minimal smoke density index (SDI < 100)
- No halogen content prevents corrosion
Our ETFE Products for Cable Industry

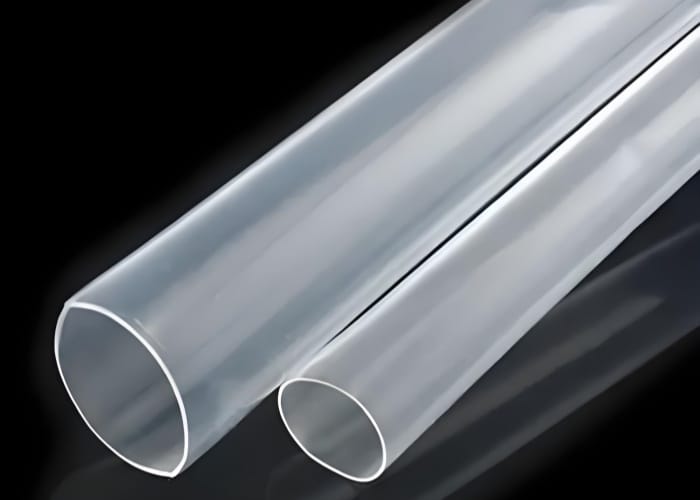

ETFE Tubing & Sleeves
Pre-manufactured tubing for wire protection and cable management in aerospace and industrial applications.
- Diameters: 0.5mm - 50mm
- Wall thickness: 0.1mm - 2mm
- Continuous lengths up to 1000m
- Custom colors available

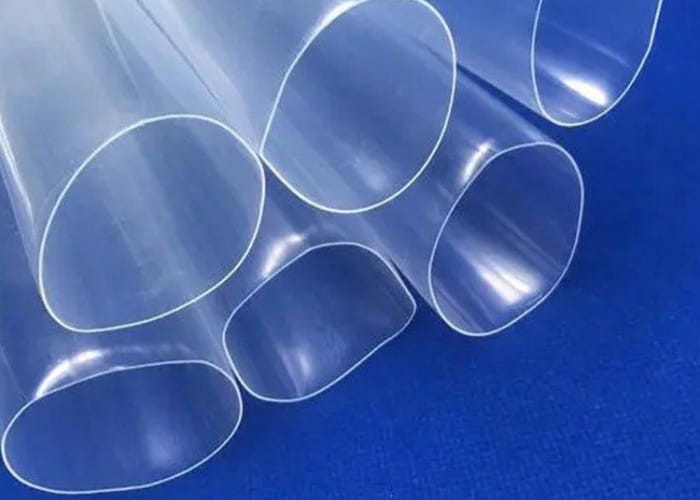

ETFE Heat Shrink Tubing
High-performance ETFE heat shrink for wire splicing and connector sealing in harsh environments.
- Shrink ratio: 2:1 and 4:1
- Operating temp: -55°C to +150°C
- Excellent chemical resistance
- UL 224 VW-1 rated

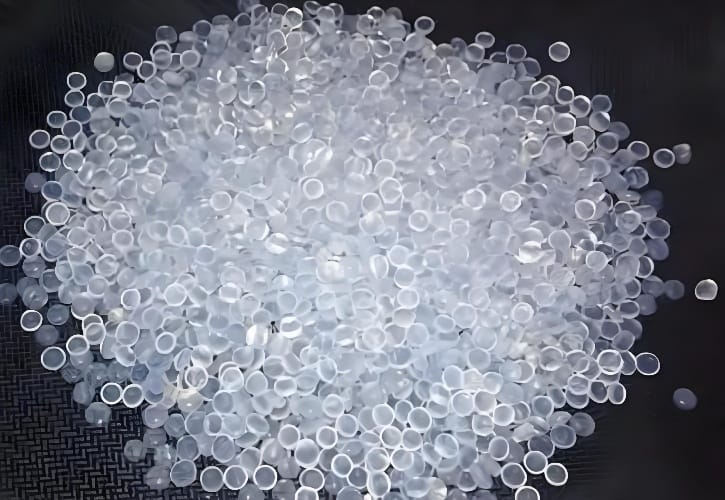

Extrusion Grade ETFE Resin
High-quality ETFE compounds specifically formulated for wire and cable jacket extrusion.
- Melt flow index: 2-20 g/10min
- Excellent processability
- Consistent quality batch-to-batch
- Available in natural and colors

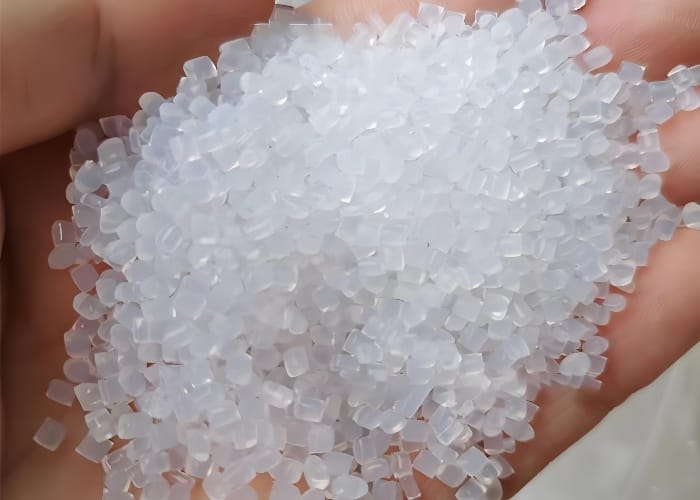

Flame Retardant Compounds
Specially formulated ETFE compounds with enhanced flame retardancy for critical applications.
- UL 94 V-0 rating
- Low smoke density
- Halogen-free formulation
- NASA outgassing compliant

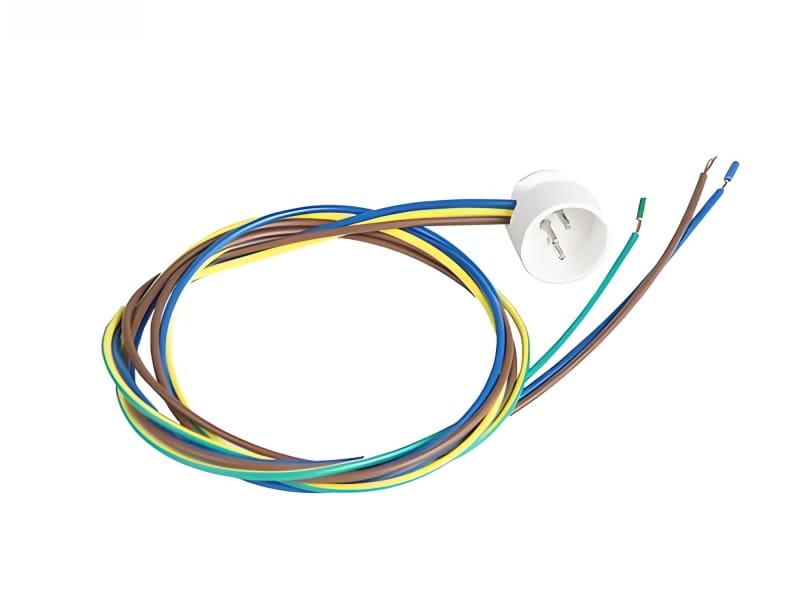

Custom Wire Harness Assembly
Complete wire harness solutions with ETFE insulation, designed and manufactured to your exact specifications.
Design Services
CAD modeling and electrical design optimization
Prototyping
Rapid prototyping and testing services
Production
High-volume manufacturing with quality assurance
Compliance & Standards of ETFE wire and ETFE Cable
Our ETFE wire and cable products meet the most stringent industry standards
MIL-P-46180
Military specification for fluoropolymer insulation and jacketing materials for aerospace applications.
UL 94 V-0
Highest flame retardancy rating with self-extinguishing properties and no flaming drips.
NASA Low Outgassing
Meets NASA SP-R-0022A requirements for low outgassing materials in space applications.
RoHS Compliant
Restriction of Hazardous Substances compliant, ensuring environmental safety and regulatory compliance.
REACH Compliant
European chemical regulation compliance ensuring safe use of chemical substances.
IEC 60811
International standard for insulating and sheathing materials of electric and optical cables.
Critical Applications Demanding ETFE Wire/ETFE Cable Solutions

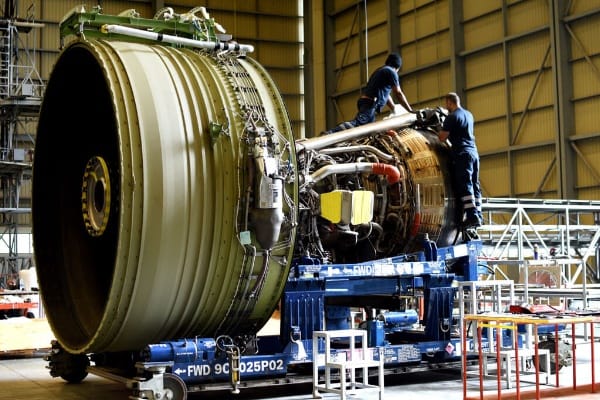

Aerospace & Aviation
Critical flight systems, avionics, and engine wiring where weight reduction and fire safety are paramount.
- Commercial aircraft wiring
- Military aircraft systems
- Satellite and space applications
- UAV and drone electronics
Robotics & Automation
High-flex applications requiring superior abrasion resistance and long-term reliability.
- Industrial robot arms
- Automated manufacturing systems
- Medical robotics
- Precision motion control

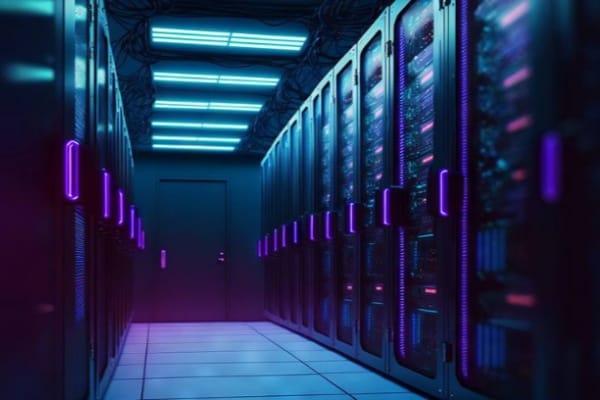

Data Centers & Telecommunications
High-speed data transmission cables requiring low smoke and superior electrical properties.
- High-speed data cables
- Fiber optic cable protection
- Server room wiring
- Telecommunications infrastructure
Marine & Offshore
Harsh marine environments demanding corrosion resistance and fire safety compliance.
- Ship electrical systems
- Offshore platform wiring
- Submarine applications
- Marine navigation systems
Technical Specifications of ETFE Wire/Tefzel Wire
| Property | Test Method | Typical Value | Units |
|---|---|---|---|
| Tensile Strength | ASTM D638 | 45 | MPa |
| Elongation at Break | ASTM D638 | 300 | % |
| Dielectric Strength | ASTM D149 | 80 | kV/mm |
| Volume Resistivity | ASTM D257 | 10¹⁶ | Ω·cm |
| Dielectric Constant (1 MHz) | ASTM D150 | 2.6 | - |
| Dissipation Factor (1 MHz) | ASTM D150 | 0.0003 | - |
| Continuous Use Temperature | UL 746B | 150 | °C |
| Melting Point | DSC | 267 | °C |
| Density | ASTM D792 | 1.70 | g/cm³ |
| Flame Rating | UL 94 | V-0 | - |
Frequently Asked Questions About ETFE Wire/ETFE Cable
What makes ETFE superior to PVC for wire insulation?
+ETFE offers superior temperature resistance (-200°C to +150°C vs. PVC's -10°C to +70°C), excellent chemical resistance, lower smoke emission, and no halogen content. It also provides better abrasion resistance and maintains flexibility at low temperatures.
Is ETFE compatible with standard wire extrusion equipment?
+Yes, ETFE can be processed on conventional extrusion equipment with some modifications. Higher processing temperatures (300-350°C) are required, and specialized screws designed for fluoropolymers are recommended for optimal results.
What certifications are available for ETFE wire products?
+Our ETFE wire products are certified to MIL-P-46180, UL 94 V-0, NASA low outgassing standards, RoHS, REACH, and IEC 60811. We can provide full certification documentation and test reports.
Can ETFE wire be used in high-frequency applications?
+Absolutely. ETFE has excellent electrical properties with low dielectric constant (2.6) and very low dissipation factor (0.0003), making it ideal for high-frequency and high-speed data transmission applications.
What is the minimum order quantity for custom ETFE wire solutions?
+Minimum order quantities vary depending on the specific requirements. For standard products, MOQ is typically 100kg. For custom formulations or colors, MOQ may be higher. Contact us for specific project requirements.
