High-Purity PFA Sheet, PFA Rod, PFA Tube & PFA Film Manufacturer
ISO 9001 Certified PFA Semi-Finished Products for Semiconductor, Chemical & Medical Industries – Custom Sizes & Grades Available
Semi-Finished PFA Products: High-Performance Stock Shapes
As a leading PFA products manufacturer in China for Euro, North America and Asia market, we specialize in high-purity fluoropolymer stock shapes including PFA sheets, rods, tubes, and films. Our PFA tube manufacturer Asia facility produces SEMI F57 compliant PFA tubing and USP Class VI PFA film with ultra-low leachables for critical applications.

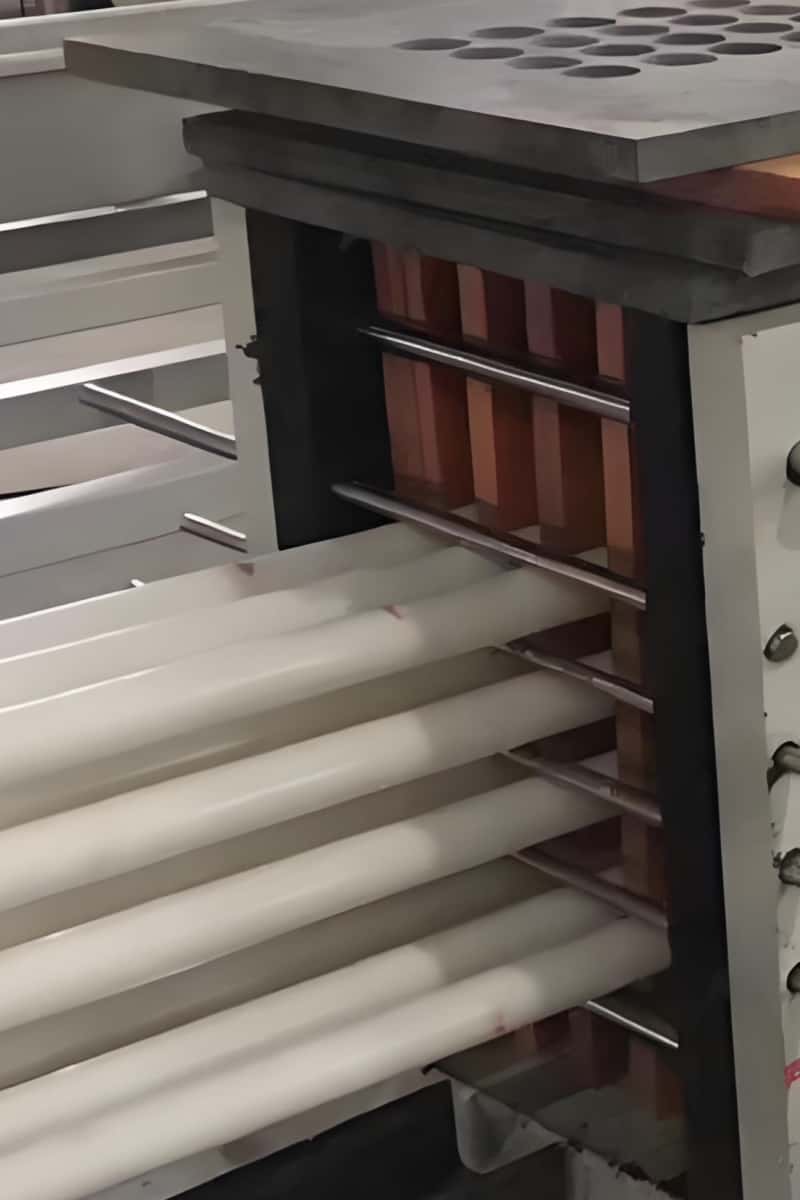

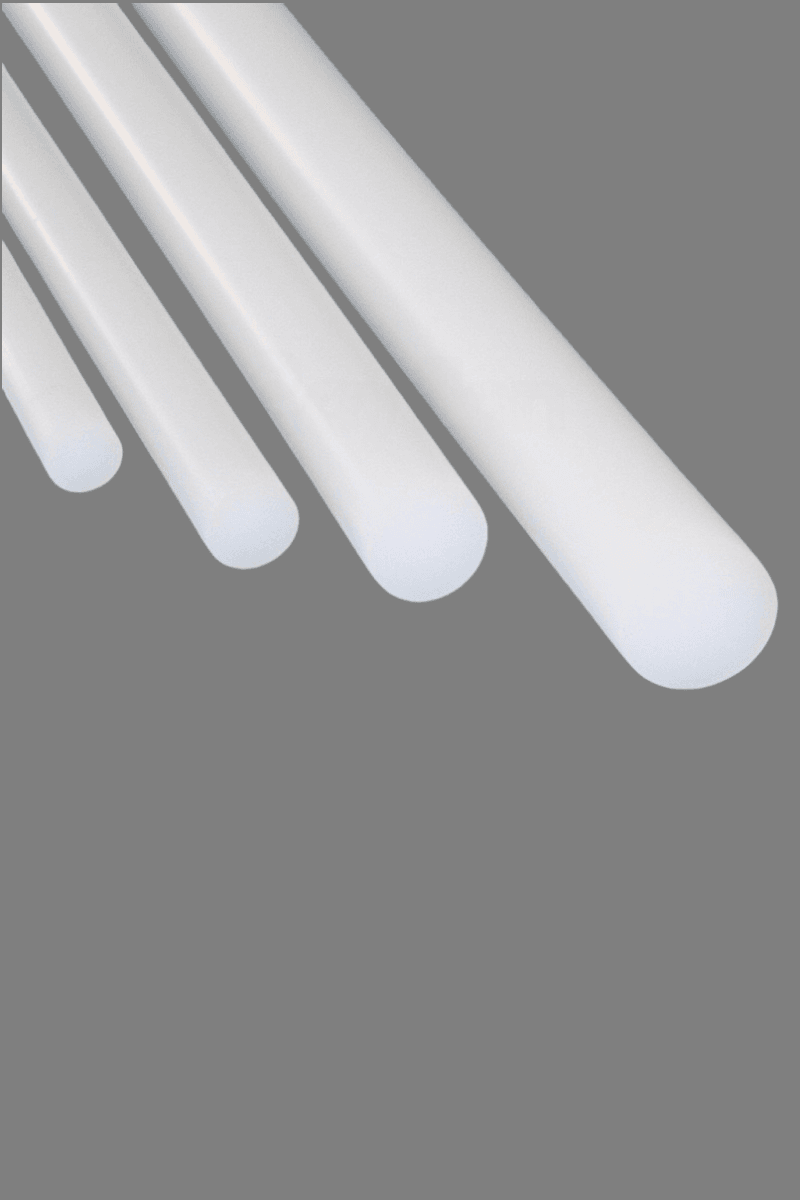

PFA Rod | High-Purity Fluoropolymer Rods for Precision Machining
Our PFA rods offer exceptional chemical resistance and thermal stability for demanding applications. Available in diameters from 3mm to 200mm, these high-purity fluoropolymer rods are ideal for machining custom components with 10mm PFA rod machining tolerance of ±0.05mm for semiconductor and chemical processing equipment.
PFA Rod Specifications
| Parameter | Standard Grade | Semiconductor Grade |
|---|---|---|
| Diameter Range | 3mm - 200mm | 6mm - 100mm |
| Length | Up to 2000mm | Up to 1500mm |
| Machining Tolerance | ±0.1mm | ±0.05mm |
| Surface Finish | Ra ≤ 1.6 μm | Ra ≤ 0.8 μm |
| Extractable Ions | ≤1 ppb | ≤0.1 ppb |
| Operating Temperature | -200°C to +260°C | -200°C to +260°C |
| Tensile Strength | ≥20 MPa | ≥22 MPa |
| Dielectric Strength | ≥60 kV/mm | ≥65 kV/mm |
PFA Rod Applications
- Semiconductor wafer processing equipment components
- Chemical pump shafts and valve stems
- Laboratory equipment and analytical instruments
- High-purity chemical transfer system parts
- Pharmaceutical processing equipment components
- Precision machined insulators and spacers
Custom Machining Services
CNC Turning
Precision turning with ±0.05mm tolerance
CNC Milling
Complex geometries and custom shapes
Threading
Metric and imperial thread cutting
Surface Finishing
Polishing to Ra 0.2 μm surface finish

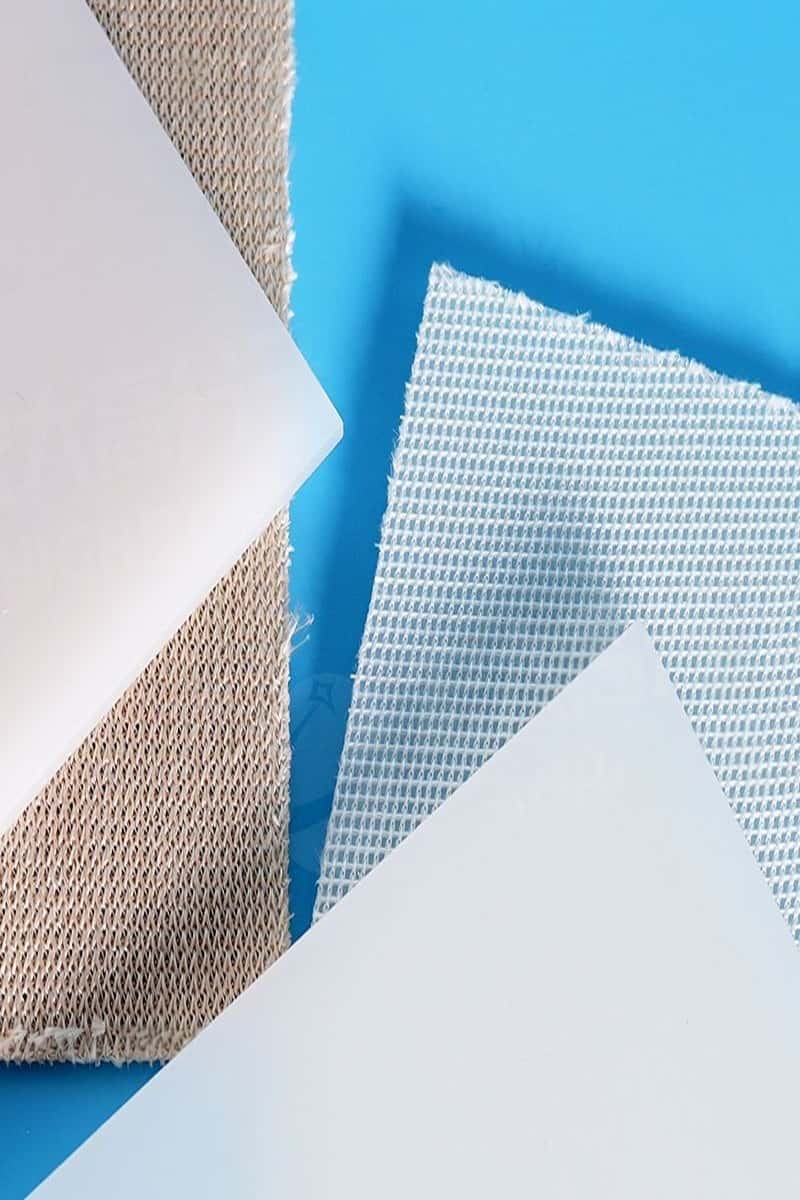

PFA Sheet | Chemical Tank Lining & High-Temperature Applications
Our PFA sheets provide superior chemical resistance and non-stick properties for demanding applications. Available from 0.5mm thick PFA sheet for chemical tank lining to 25mm thick plates, these fluoropolymer sheets offer excellent weldability and can be thermoformed for complex shapes.
PFA Sheet Specifications
| Parameter | Thin Sheet (0.5-3mm) | Thick Plate (5-25mm) |
|---|---|---|
| Thickness Range | 0.5mm - 3mm | 5mm - 25mm |
| Standard Sizes | 1000×1000mm, 1200×1200mm | 600×600mm, 1000×1000mm |
| Thickness Tolerance | ±0.05mm | ±0.1mm |
| Flatness | ≤2mm/m | ≤3mm/m |
| Surface Quality | Smooth, bubble-free | Smooth, bubble-free |
| Weld Strength | ≥80% of base material | ≥85% of base material |
| Chemical Resistance | 98% H2SO4, 50% NaOH | 98% H2SO4, 50% NaOH |
| Thermoforming Temp | 280°C - 320°C | 300°C - 340°C |
PFA Sheet Applications
- Chemical tank lining and vessel protection
- Semiconductor wet bench construction
- Laboratory fume hood linings
- Heat exchanger and reactor linings
- Pharmaceutical equipment surfaces
- Food processing equipment linings
Fabrication Services
Welding & Joining
Hot gas welding and fusion bonding
Thermoforming
Complex shapes and custom geometries
CNC Cutting
Precision cutting to customer drawings
Edge Finishing
Smooth edge preparation for welding

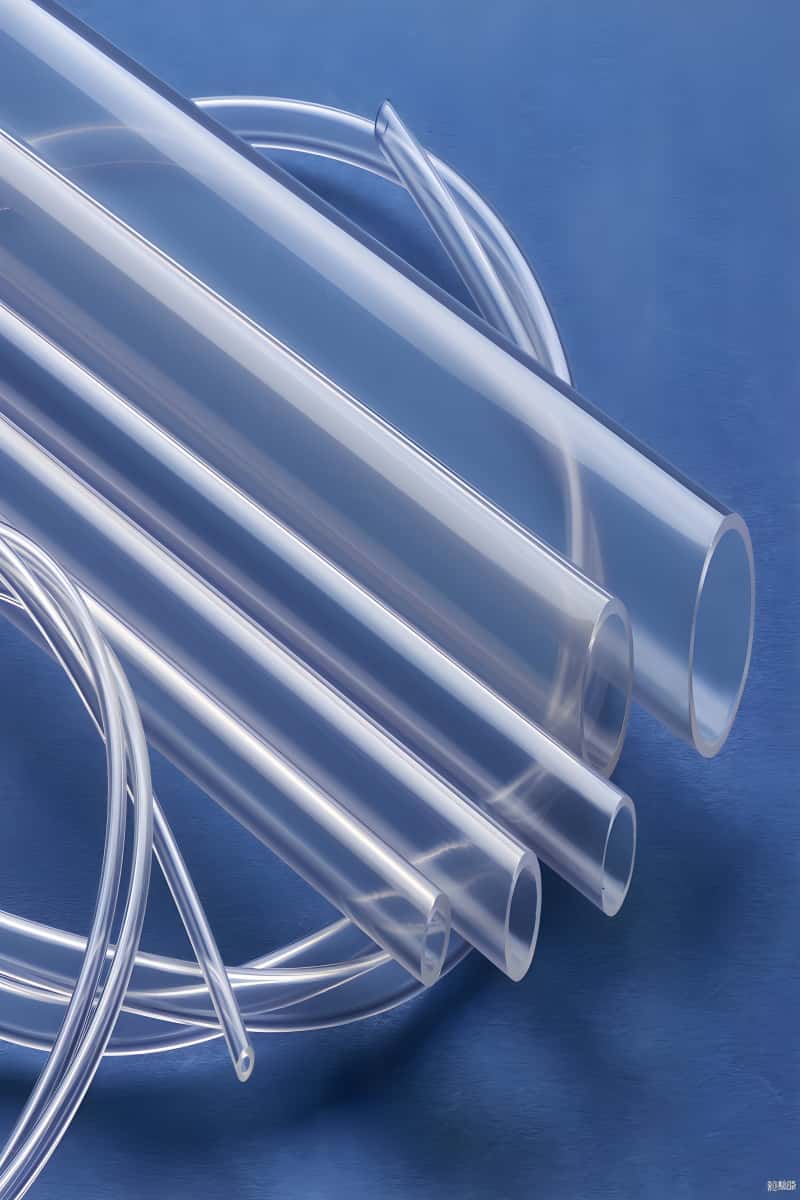

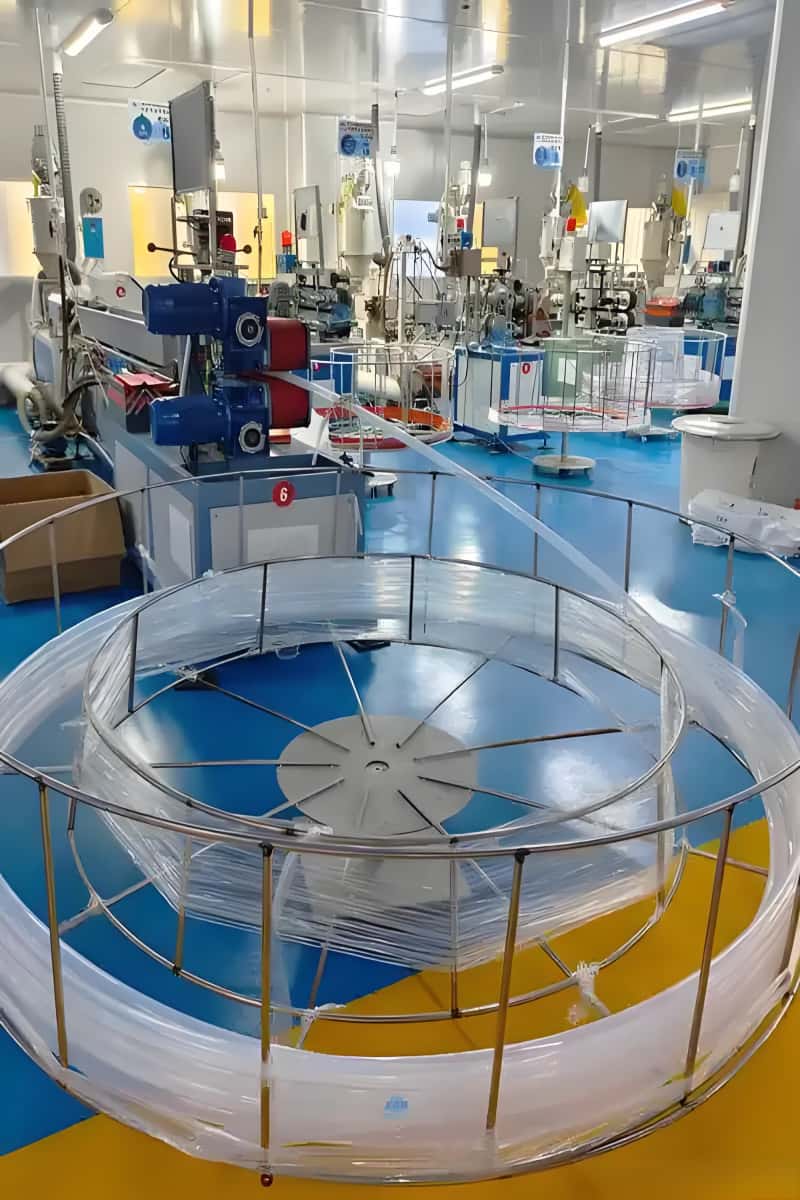

PFA Tube Manufacturer | SEMI F57 Compliant PFA Tubing for Semiconductor
As a leading PFA tube manufacturer, we manufacture SEMI F57 compliant PFA tubing for semiconductor and high-purity applications. Our PFA tubes offer exceptional chemical resistance, ultra-low extractables, and precise dimensional control for critical fluid handling systems.
PFA Tube Specifications
| Parameter | Standard Grade | SEMI F57 Grade |
|---|---|---|
| Inner Diameter | 2mm - 100mm | 4mm - 50mm |
| Wall Thickness | 1mm - 10mm | 1.5mm - 5mm |
| Length | Up to 100m coils | Up to 50m coils |
| Dimensional Tolerance | ±0.1mm | ±0.05mm |
| Extractable Metals | ≤5 ppb | ≤0.1 ppb |
| Particle Shedding | ≤1000 particles/mL | ≤100 particles/mL |
| Working Pressure | Up to 16 bar | Up to 10 bar |
| Burst Pressure | 4× working pressure | 4× working pressure |
PFA Tube Applications
- Semiconductor chemical delivery systems
- Ultra-pure water distribution networks
- Analytical instrument sample lines
- Pharmaceutical fluid transfer systems
- Chemical processing plant piping
- Laboratory gas and liquid handling
SEMI F57 Compliance
Extractable Metals
≤0.1 ppb for 13 key metals per SEMI F57
Particle Generation
≤100 particles/mL (≥0.5 μm) in DI water
Organic Extractables
≤1 ppm total organic carbon (TOC)
Fluoride Ion
≤0.1 ppm fluoride ion extraction

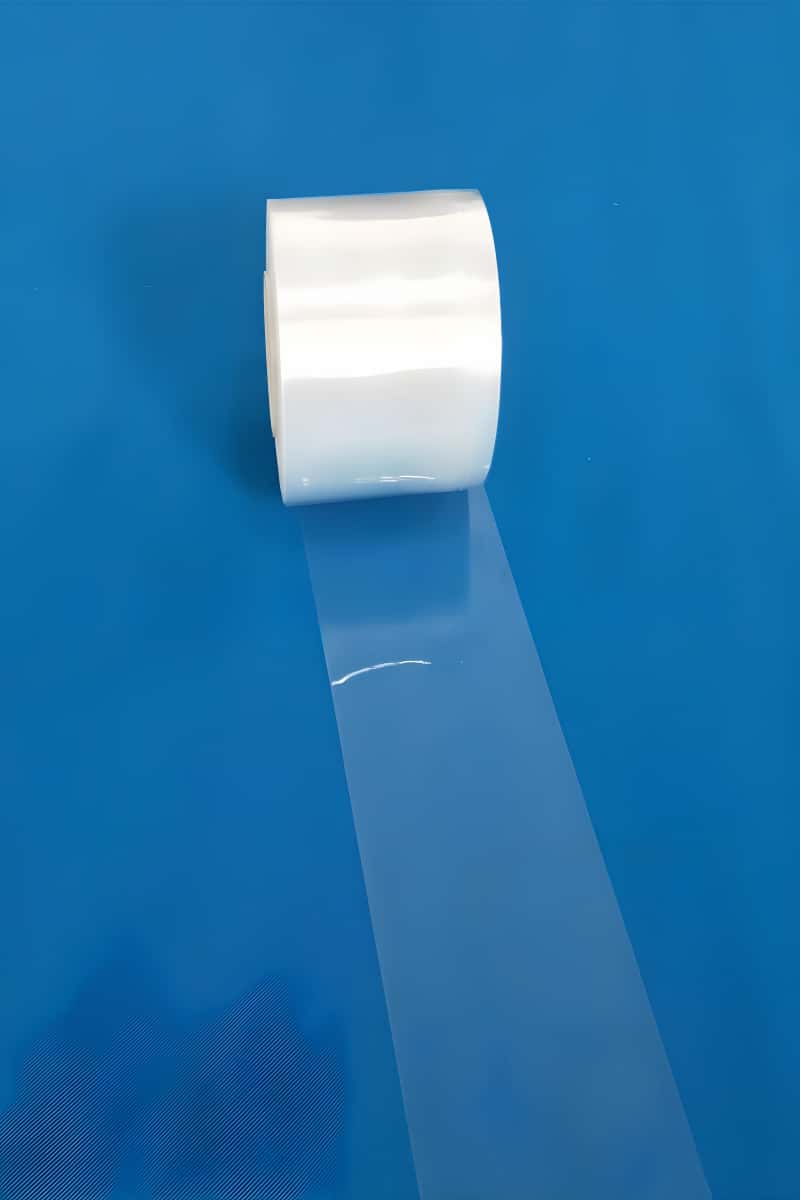

PFA Film Manufacturer | USP Class VI PFA Film for Medical Applications
As a specialized PFA film manufacturer, we produce USP Class VI PFA film for medical and pharmaceutical applications. Our ultra-thin PFA films offer excellent chemical resistance, biocompatibility, and optical clarity for demanding applications requiring FDA compliance.
PFA Film Specifications
| Parameter | Standard Film | USP Class VI Film |
|---|---|---|
| Thickness Range | 25 - 500 μm | 50 - 250 μm |
| Width | Up to 1500mm | Up to 1000mm |
| Thickness Tolerance | ±10% | ±5% |
| Optical Clarity | ≥90% light transmission | ≥92% light transmission |
| Haze | ≤5% | ≤3% |
| Tensile Strength | ≥25 MPa | ≥28 MPa |
| Elongation at Break | ≥300% | ≥350% |
| Biocompatibility | ISO 10993 tested | USP Class VI certified |
PFA Film Applications
- Medical device packaging and barriers
- Pharmaceutical container linings
- Laboratory sample bags and containers
- Chemical-resistant protective films
- Optical windows for chemical equipment
- Release films for composite manufacturing
Medical & Pharmaceutical Compliance
USP Class VI
Biocompatibility testing per USP standards
ISO 10993
Biological evaluation of medical devices
FDA 21 CFR 177.1550
Food contact substance approval
Cytotoxicity Testing
Non-cytotoxic per ISO 10993-5
PFA Tube for Semiconductor Equipment
Prevent Ionic Contamination in Wafer Processing
Semiconductor manufacturing requires ultra-pure materials to prevent ionic contamination that can damage sensitive wafer surfaces and reduce yield rates. Traditional materials can introduce metallic ions and particles that compromise product quality.
Our PFA Tubes Meet SEMI F57 Extractables Standards
Our SEMI F57 compliant PFA tubing provides ultra-low extractables (≤0.1ppb) and minimal particle generation, ensuring the highest purity for semiconductor chemical delivery systems and preventing contamination in critical processes.
Semiconductor Grade PFA Benefits
Ultra-Low Extractables
≤0.1 ppb metallic ions per SEMI F57 standards
Minimal Particle Shedding
≤100 particles/mL in ultra-pure water
Chemical Compatibility
Resistant to all semiconductor process chemicals
Temperature Stability
Stable performance from -200°C to +260°C
PFA Chemical Resistance Guide
Comprehensive comparison of PFA vs PTFE vs PVDF chemical resistance across 40+ common industrial chemicals. Our testing data helps you select the optimal fluoropolymer for your specific application.
Chemical Resistance Comparison: PFA vs PTFE vs PVDF
| Chemical | Concentration | Temperature | PFA | PTFE | PVDF |
|---|---|---|---|---|---|
| Sulfuric Acid | 98% | 200°C | Excellent | Excellent | Good |
| Hydrochloric Acid | 37% | 100°C | Excellent | Excellent | Excellent |
| Sodium Hydroxide | 50% | 150°C | Excellent | Excellent | Excellent |
| Nitric Acid | 70% | 100°C | Excellent | Excellent | Good |
| Hydrofluoric Acid | 48% | 80°C | Excellent | Excellent | Excellent |
| Aqua Regia | Concentrated | 100°C | Excellent | Excellent | Fair |
| Chlorine Gas | Dry | 200°C | Excellent | Excellent | Good |
| Acetone | 100% | 60°C | Excellent | Excellent | Good |
| Methanol | 100% | 65°C | Excellent | Excellent | Excellent |
| Toluene | 100% | 110°C | Excellent | Excellent | Good |
Resistance Rating Legend
No effect, suitable for continuous use
Minor effect, suitable for most applications
Moderate effect, limited use recommended
Significant effect, not recommended
ISO 9001 Certified Manufacturing Excellence
Our state-of-the-art manufacturing facility in Asia produces high-quality PFA stock shapes with stringent quality control and international certifications. We serve as a trusted PFA manufacturer in China for Euro, North America and Asia market with consistent quality and reliable delivery.

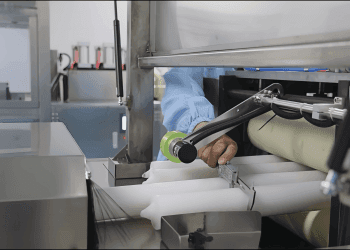

Extrusion Technology
Advanced extrusion lines for rods, tubes, and profiles
- Multi-layer co-extrusion capability
- Precise dimensional control
- Continuous quality monitoring

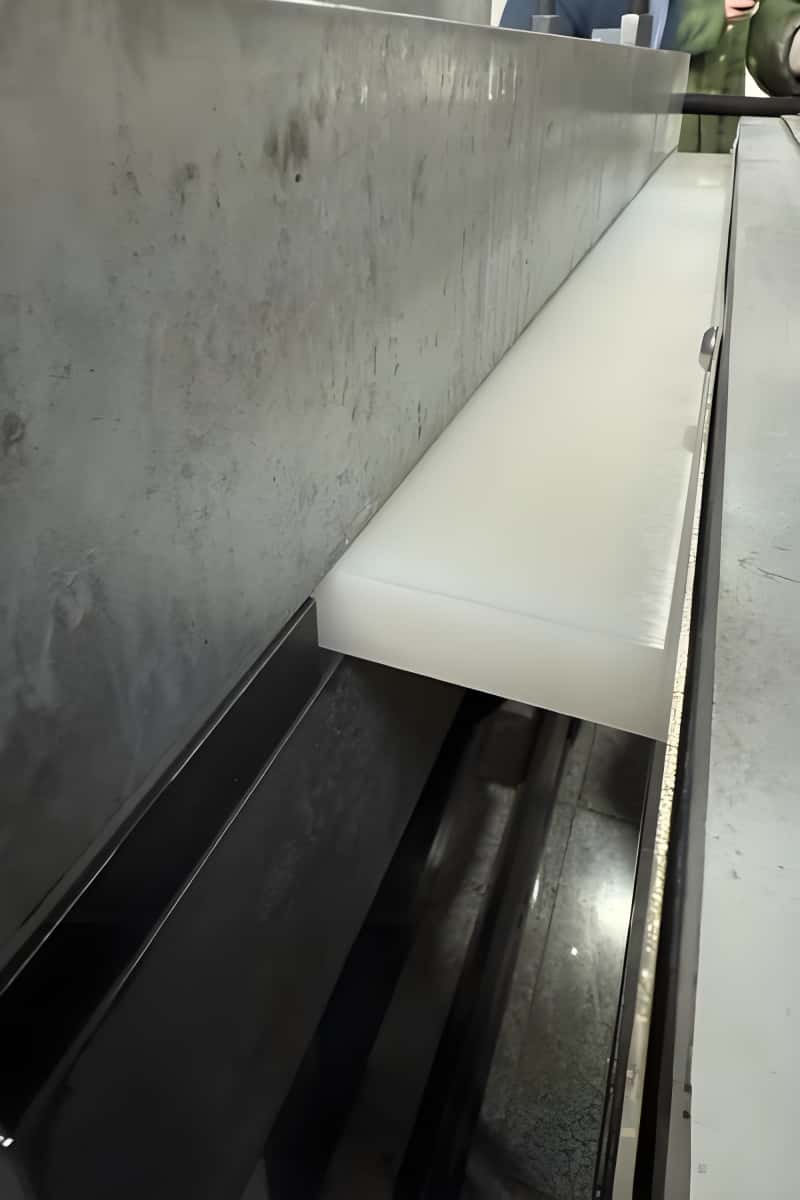

Compression Molding
High-pressure molding for sheets and custom shapes
- Up to 2000 ton press capacity
- Uniform thickness control
- Large format capabilities

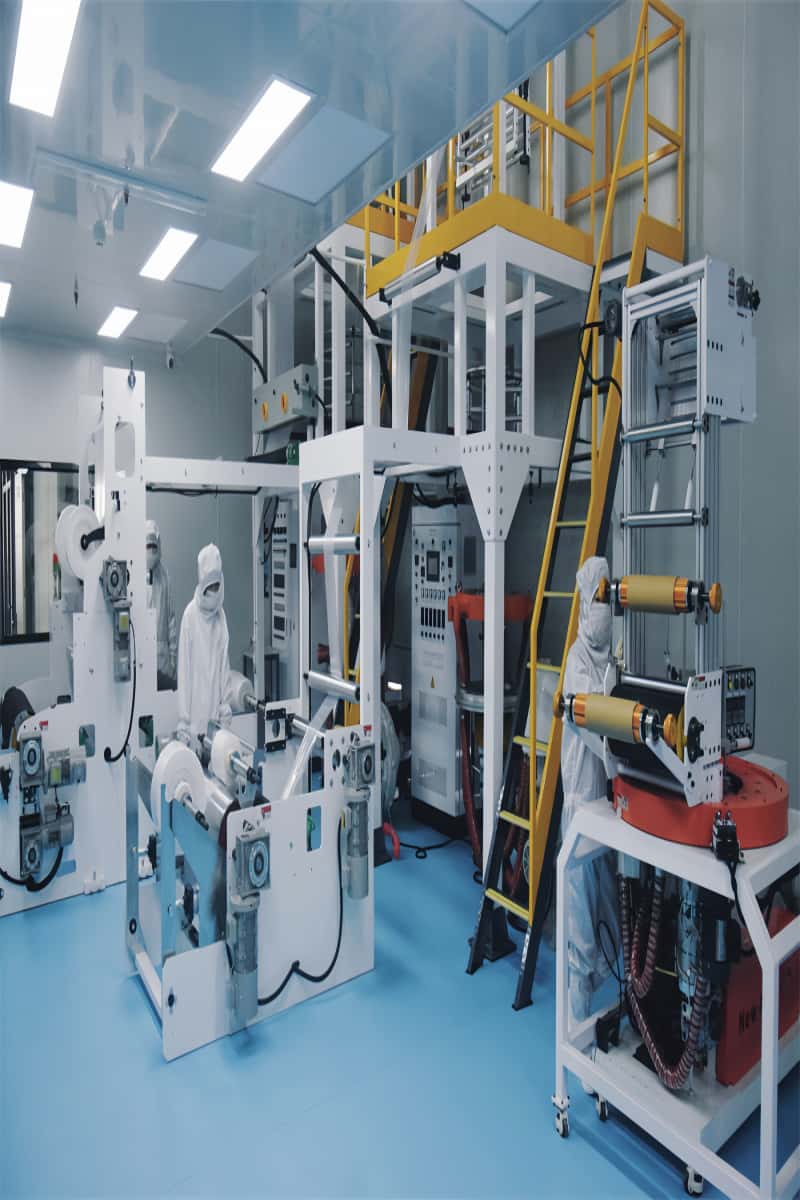

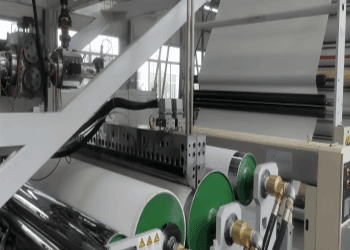

Film Extrusion
Blown film and cast film production lines
- Ultra-thin film capability
- Optical grade clarity
- Multi-layer barrier films
Quality Control
Comprehensive testing and certification laboratory
- SEMI F57 extractables testing
- Mechanical property validation
- Chemical resistance testing
Global Supply Chain & Market Coverage
As a leading PFA tube manufacturer Asia, we maintain strategic inventory and distribution networks to serve customers worldwide. Our global supply chain ensures reliable delivery and competitive pricing for PFA stock shapes across all major markets.
Europe Market
Comprehensive PFA manufacturer in China for Euro market with full compliance
- CE marking and REACH compliance
- Local warehouse in Germany
- Technical support in multiple languages
- Competitive pricing for volume orders
North America
Reliable PFA stock shapes supply with FDA and SEMI certifications
- FDA 21 CFR compliance
- SEMI F57 certified products
- US distribution partnerships
- Fast delivery from West Coast
Asia Pacific
Regional PFA tube manufacturer Asia serving local semiconductor industry
- Local manufacturing advantage
- Semiconductor industry focus
- Just-in-time delivery
- Technical application support
Quality Certifications & Standards
Our PFA stock shapes meet the highest international quality standards and industry-specific certifications, ensuring reliable performance and regulatory compliance for critical applications.
ISO 9001:2015
Quality management system for consistent manufacturing processes
SEMI F57
Semiconductor industry standards for ultra-pure PFA materials
USP Class VI
Biocompatibility certification for medical and pharmaceutical applications
FDA 21 CFR 177.1550
Food contact substance approval for pharmaceutical and food applications
Technical Support & Custom Solutions
Material Selection
Expert guidance on PFA grade selection for specific applications
Custom Machining
Precision machining services with ±0.05mm tolerance
Application Testing
Chemical compatibility and performance validation
Technical Documentation
Complete material certificates and test reports
