PCTFE Molding for seals, valve seats, insulators, semiconductor components.
Custom Machined PCTFE Parts for Extreme Chemical and Pressure Environments. Ideal for Seals, Seats, Bushings, and Insulators.
PCTFE Molding - Engineered for Demanding Sealing and Mechanical Applications
PCTFE (Polychlorotrifluoroethylene) seals and PCTFE machined components represent the pinnacle of fluoroplastic performance for critical sealing applications. Unlike PTFE, which suffers from cold flow and creep under compression, PCTFE machined parts maintain dimensional stability and sealing force even under extreme pressure and temperature cycling.
Our precision CNC PCTFE parts combine exceptional compression resistance with outstanding chemical inertness, making them the preferred choice for high pressure plastic seals, valve components, and bearing applications in aerospace, chemical processing, semiconductor, and oil & gas industries. As a leading manufacturer of Kel-F parts (the trade name for PCTFE), we deliver custom fluoroplastic components that solve the most challenging sealing problems.
Superior Creep Resistance
10x better compression resistance than PTFE - maintains seal integrity under constant load
Extreme Chemical Compatibility
Resists virtually all aggressive chemicals, acids, bases, and solvents
High Mechanical Strength
Tensile strength 2-3x higher than PTFE - ideal for high-pressure applications
Wide Temperature Range
Performs from -240°C to +200°C without degradation
Why PCTFE Outperforms PTFE in Critical Seals
While PTFE is widely used for sealing applications, it has significant limitations in high-stress environments. PCTFE seals overcome these critical weaknesses, providing superior performance where PTFE fails.
Pain Point 1: Eliminating Seal Failure Due to Cold Flow (Creep)
The Problem:
PTFE seals suffer from cold flow (creep) under sustained compression, causing them to deform permanently and lose sealing force over time. This leads to leakage, frequent maintenance, and system downtime - especially problematic in high pressure plastic seals and valve applications.
✓ PCTFE Solution:
PCTFE's exceptional plastic seal creep resistance maintains dimensional stability under constant load. With a compressive strength of 55 MPa (vs. PTFE's 12 MPa), PCTFE seals retain their shape and sealing force for years, even in high-pressure systems up to 200 bar. This translates to:
- Extended seal life (5-10x longer than PTFE)
- Reduced maintenance frequency and costs
- Reliable sealing in critical applications
- No need for frequent retightening or replacement

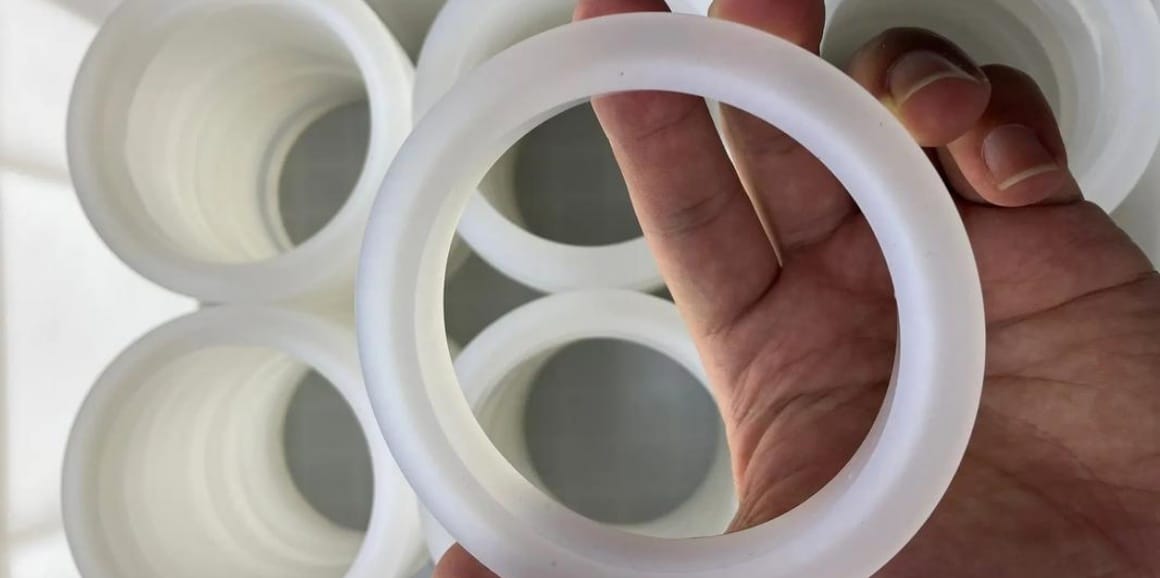

Pain Point 2: Sealing in High-Pressure Systems with Aggressive Media
The Problem:
Many industrial processes require seals for aggressive chemicals combined with high mechanical loads. PTFE offers chemical resistance but lacks mechanical strength, while other high-strength plastics (like PEEK) degrade in harsh chemicals. Finding a material that combines both properties is a critical challenge.
✓ PCTFE Solution:
PCTFE machined parts uniquely combine high mechanical strength with near-universal chemical resistance. Our PCTFE valve seats, O-rings, and gaskets perform reliably in:
- Concentrated acids and bases (HCl, H₂SO₄, NaOH up to 50%)
- Aggressive solvents (chlorinated solvents, ketones, aromatics)
- Oxidizing agents (chlorine, bromine, peroxides)
- Cryogenic liquids (LOX, LN₂, LNG) - ideal for PCTFE for oxygen service
- High-pressure gases (up to 300 bar in some applications)
This makes PCTFE the material of choice for chemical processing valves, semiconductor wet benches, aerospace oxygen systems, and oil & gas applications.

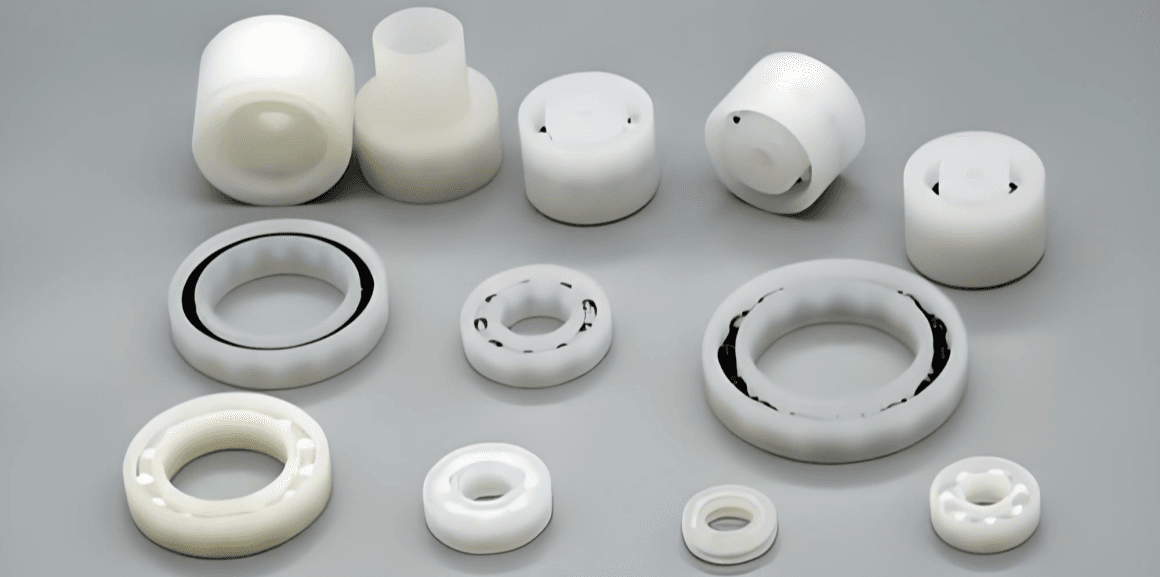

Pain Point 3: Non-Lubricated Bearing Performance
The Problem:
In clean environments (semiconductor, pharmaceutical, food processing) or where contamination is unacceptable, traditional lubricated bearings cannot be used. PTFE bearings wear quickly under load, while other plastics lack the necessary chemical resistance or low friction properties.
✓ PCTFE Solution:
PCTFE bearings and bushings provide excellent non-lubricated plastic bearing performance with:
- Low coefficient of friction (0.3-0.35) - self-lubricating properties
- High wear resistance - 5x better than PTFE under load
- No particle generation or contamination
- Chemical compatibility with process media
- Dimensional stability under varying loads
Ideal for valve stems, pump bushings, guide bearings, and sliding components in clean or chemically aggressive environments.
Performance Comparison: PCTFE vs. PTFE for Sealing Applications
| Property | PCTFE (Kel-F) | PTFE | Advantage |
|---|---|---|---|
| Compressive Strength | 55 MPa | 12 MPa | PCTFE: 4.6x stronger |
| Creep Resistance (Cold Flow) | Excellent - minimal deformation | Poor - significant creep | PCTFE: 10x better |
| Tensile Strength | 35-40 MPa | 20-35 MPa | PCTFE: Higher strength |
| Hardness (Shore D) | 75-80 | 50-60 | PCTFE: Better wear resistance |
| Chemical Resistance | Excellent (nearly universal) | Excellent (nearly universal) | Equal |
| Temperature Range | -240°C to +200°C | -260°C to +260°C | PTFE: Slightly wider |
| Coefficient of Friction | 0.30-0.35 | 0.05-0.10 | PTFE: Lower friction |
| Water Absorption | 0.00% (zero) | 0.01% | PCTFE: Better barrier |
| Gas Permeability | Lowest of all plastics | Low | PCTFE: Best barrier |
| Machinability | Excellent - tight tolerances | Good - but soft | PCTFE: Better precision |
| Oxygen Service Compatibility | Excellent (BAM approved) | Good | PCTFE: Preferred for LOX |
Conclusion: While PTFE offers lower friction and slightly wider temperature range, PCTFE seals provide superior mechanical strength, creep resistance, and dimensional stability - making them the preferred choice for high-pressure, high-load sealing applications where long-term reliability is critical.
Our PCTFE Molding & Machining Capabilities
As a specialized manufacturer of CNC PCTFE parts, we offer precision machining services to produce custom PCTFE machined parts to your exact specifications. Our advanced CNC equipment and experienced technicians can achieve tolerances down to ±0.01mm for critical sealing components.
PCTFE Sealing Components
- PCTFE O-rings - Standard and custom sizes (AS568, metric, custom profiles)
- PCTFE V-rings and PCTFE U-cups - Dynamic sealing applications
- PCTFE gaskets and PCTFE washers - Flat, spiral wound, and custom shapes
- PCTFE backup rings - Anti-extrusion support for O-rings
- PCTFE piston seals - Hydraulic and pneumatic cylinders
- Lip seals - Rotary shaft sealing

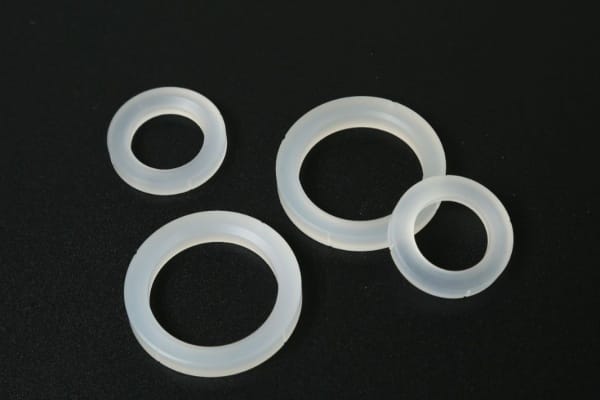

PCTFE Valve Components
- PCTFE valve seats - Ball, gate, globe, and check valves
- PCTFE valve discs and plugs - Precision sealing surfaces
- PCTFE stem seals and packing - Low-friction, leak-free operation
- PCTFE diaphragms - Flexible sealing for diaphragm valves
- PCTFE valve inserts - Chemical-resistant valve body linings
- PCTFE regulator components - Precision pressure control parts

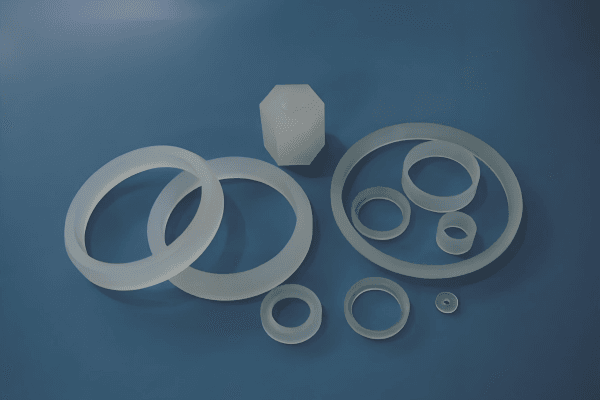

PCTFE Bearing & PCTFE Wear Components
- PCTFE bearings - Radial and thrust bearings for clean environments
- PCTFE bushings and PCTFE sleeves - Self-lubricating, chemical-resistant
- PCTFE wear rings - Pump and compressor applications
- PCTFE guide rings - Piston and rod guidance
- PCTFE thrust washers - Axial load applications
- PCTFE slide plates - Low-friction sliding surfaces
Custom Machined Parts
- PCTFE insulators and PCTFE spacers - Electrical and thermal insulation
- PCTFE pump components - Impellers, diffusers, wear plates
- PCTFE fittings and PCTFE connectors - Chemical transfer systems
- PCTFE nozzles and PCTFE orifices - Precision flow control
- PCTFE retainers and PCTFE holders - Assembly and mounting components
- PCTFE complex geometries - Multi-axis CNC machining capabilities
Technical Machining Capabilities of PCTFE Molding/Kel-F Molding
Common Industries & Media of Precision PCTFE Components
PCTFE seals and fluoroplastic components are trusted across demanding industries where failure is not an option. Our Kel-F parts provide reliable performance in the most challenging environments.
Aerospace & Aviation
PCTFE for oxygen service is the material of choice for aerospace applications due to its exceptional safety profile and performance in cryogenic conditions.
Applications:
- LOX (Liquid Oxygen) systems - Seals, valve seats, and fittings (BAM approved)
- Cryogenic fuel systems - LH₂, LNG sealing components
- Hydraulic systems - High-pressure seals and backup rings
- Environmental control systems - Air and fluid management
- Landing gear components - Bushings and wear-resistant parts
Compatible Media: Liquid oxygen (LOX), liquid nitrogen (LN₂), liquid hydrogen (LH₂), aviation fuels, hydraulic fluids (Skydrol, MIL-PRF-83282), compressed gases
Chemical Processing
Chemical plants require seals for aggressive chemicals that maintain integrity under thermal cycling and mechanical stress. PCTFE delivers unmatched reliability.
Applications:
- Process valves - Ball, gate, and diaphragm valve seats and seals
- Pump seals - Centrifugal and positive displacement pumps
- Reactor components - Gaskets, seals, and sight glass seals
- Piping systems - Flange gaskets and expansion joint seals
- Sampling systems - Valve components for analytical equipment
Compatible Media: Concentrated acids (HCl, H₂SO₄, HNO₃, HF), caustic solutions (NaOH, KOH), chlorinated solvents, ketones, esters, oxidizing agents (Cl₂, Br₂, H₂O₂), organic and inorganic chemicals
Semiconductor Manufacturing
Semiconductor fabs demand ultra-pure, particle-free sealing solutions. PCTFE machined parts meet stringent cleanliness and chemical resistance requirements.
Applications:
- Wet bench equipment - Valve seats and seals for chemical delivery
- Gas delivery systems - Ultra-high purity gas sealing
- Vacuum systems - Low outgassing seals and O-rings
- Chemical mechanical planarization (CMP) - Pump and valve components
- Etching and cleaning tools - Chemical-resistant sealing solutions
Compatible Media: Ultrapure water (UPW), hydrogen peroxide (H₂O₂), sulfuric acid (H₂SO₄), hydrofluoric acid (HF), ammonia (NH₃), specialty gases (SiH₄, NF₃, WF₆), organic solvents
Oil & Gas
Upstream, midstream, and downstream operations require high pressure plastic seals that withstand harsh hydrocarbons, H₂S, and extreme pressures.
Applications:
- Wellhead equipment - High-pressure valve seats and seals
- Subsea systems - Sealing components for underwater applications
- Pipeline valves - Ball and gate valve components
- Compressor seals - Gas compression and transmission
- Metering and instrumentation - Precision sealing for measurement devices
Compatible Media: Crude oil, natural gas, LNG, LPG, sour gas (H₂S), CO₂, methanol, glycol, hydraulic fluids, corrosion inhibitors, drilling fluids
Pharmaceutical & Biotechnology
Pharma and biotech processes require USP Class VI compliant materials with zero extractables and excellent chemical resistance for sterile applications.
Applications:
- Aseptic valves - Sterile process valve components
- Bioreactor seals - Cell culture and fermentation systems
- Chromatography systems - HPLC and purification equipment seals
- Fill-finish equipment - Vial filling and packaging machinery
- Clean-in-place (CIP) systems - Sanitary valve components
Compatible Media: WFI (Water for Injection), cleaning agents (NaOH, acids), solvents (ethanol, isopropanol), buffers, cell culture media, APIs (active pharmaceutical ingredients)
Analytical & Laboratory
Laboratory and analytical instruments require inert, low-extractable sealing materials that won't contaminate samples or interfere with sensitive measurements.
Applications:
- HPLC/UHPLC systems - Pump seals and valve components
- Gas chromatography (GC) - Injector and detector seals
- Mass spectrometry - Vacuum seals and sample introduction
- Solvent delivery systems - Chemical-resistant pump components
- Autosampler components - Precision sealing for sample handling
Compatible Media: HPLC solvents (acetonitrile, methanol, THF), acids, bases, buffer solutions, organic solvents, carrier gases (He, N₂, H₂)
Why Source PCTFE Seals and Machined PCTFE Parts from Us?
Factory Direct Manufacturing
As a direct manufacturer of PCTFE machined parts in China, we eliminate middlemen and offer competitive pricing without compromising quality. Our vertically integrated facility handles everything from raw material sourcing to precision CNC machining and quality inspection.
Precision CNC Machining
Our advanced CNC equipment and skilled machinists produce CNC PCTFE parts with tolerances down to ±0.01mm. We specialize in complex geometries, tight tolerances, and superior surface finishes for critical sealing applications.
Quality Assurance
Every batch of PCTFE seals undergoes rigorous quality control including dimensional inspection (CMM), material verification, and performance testing. We provide material certifications and test reports with every order.
Custom Engineering Support
Our technical team assists with material selection, design optimization, and application-specific solutions. We can recommend the best fluoroplastic components for your specific operating conditions and help troubleshoot sealing challenges.
Flexible Order Quantities
Whether you need prototype quantities or production volumes, we accommodate orders of all sizes. Low minimum order quantities (MOQ) for custom PCTFE O-rings and machined parts make us ideal for both R&D and production needs.
Global Export Experience
With extensive experience exporting Kel-F parts worldwide, we handle international logistics, documentation, and compliance. Our products meet international standards and we can provide material certifications for regulated industries.
Technical Resources & Support of Custom PCTFE Parts
📄 Material Data Sheets
Comprehensive technical data sheets with mechanical, thermal, and chemical properties of PCTFE
📐 Design Guidelines
Engineering guides for designing PCTFE seals, including groove dimensions and installation recommendations
🧪 Chemical Compatibility Charts
Detailed compatibility data for PCTFE with thousands of chemicals, solvents, and process media
🔍 Application Case Studies
Real-world examples of PCTFE sealing solutions solving critical industrial challenges
