PVDF-injection-molding parts Manufacturer
High quality PVDF components made by injection or molded, chemical resistant parts
Professional PVDF Injection Molding Services & PVDF Custom Components
We are a leading manufacturer of PVDF injection molding in China. What products we are good at are high-precision PVDF injection molded parts, custom molded components, and CNC machined parts. Our expertise spans PVDF chemical pump housings, PVDF semiconductor equipment components, PVDF pipe fittings, PVDF flange gaskets, and PVDF insulation terminals. With advanced molding and machining capabilities, we deliver superior PVDF parts for chemical processing, water treatment, and semiconductor manufacturing applications.
Precision Molding
Advanced injection molding with tight tolerances
Custom Design
Tailored solutions for specific applications
CNC Machining
High-precision machining for complex geometries
Quality Assurance
Comprehensive testing and quality control
PVDF Injection Molding 1: PVDF Chemical Pump Housings & PVDF Valve Components
High-performance PVDF pump housings, PVDF valve bodies, and PVDF impellers designed for aggressive chemical environments. Our molded and machined PVDF pump components offer exceptional chemical resistance, dimensional stability, and long service life in demanding chemical processing applications.
PVDF Chemical Pump Components Specifications
| Component Type | Size Range | Manufacturing Process |
|---|---|---|
| Pump Housings | DN25 - DN300 | Injection Molding + Machining |
| Valve Bodies | 1/2" - 8" NPT/BSP | Precision CNC Machining |
| Impellers | Ø50mm - Ø400mm | Injection Molding |
| Diaphragms | Ø25mm - Ø200mm | Compression Molding |
| Sealing Rings | Custom dimensions | Precision Machining |
| Pressure Rating | Up to 25 bar | Hydrostatic tested |
PVDF Chemical Pump Components Applications
- Acid and alkali transfer pumps for chemical processing
- Corrosive media handling in pharmaceutical manufacturing
- Electroplating and surface treatment equipment
- Water treatment and chemical dosing systems
- Laboratory and analytical equipment pumps
- Semiconductor wet process equipment
Key Features of PVDF Injection Molding
Chemical Resistance
Excellent resistance to acids, bases, and organic solvents
Dimensional Stability
Maintains precise tolerances under thermal cycling
Low Friction
Smooth surface finish reduces wear and energy consumption
FDA Compliance
Food-grade materials available for pharmaceutical use
PVDF Injection Molding 2: PVDF Semiconductor Equipment Parts & PVDF Components
Ultra-high purity PVDF components for semiconductor manufacturing equipment. Our precision-molded and machined PVDF parts meet stringent cleanliness and purity requirements for wafer processing, chemical delivery systems, and cleanroom applications.
PVDF Semiconductor Components Specifications
| Component Type | Purity Level | Surface Finish |
|---|---|---|

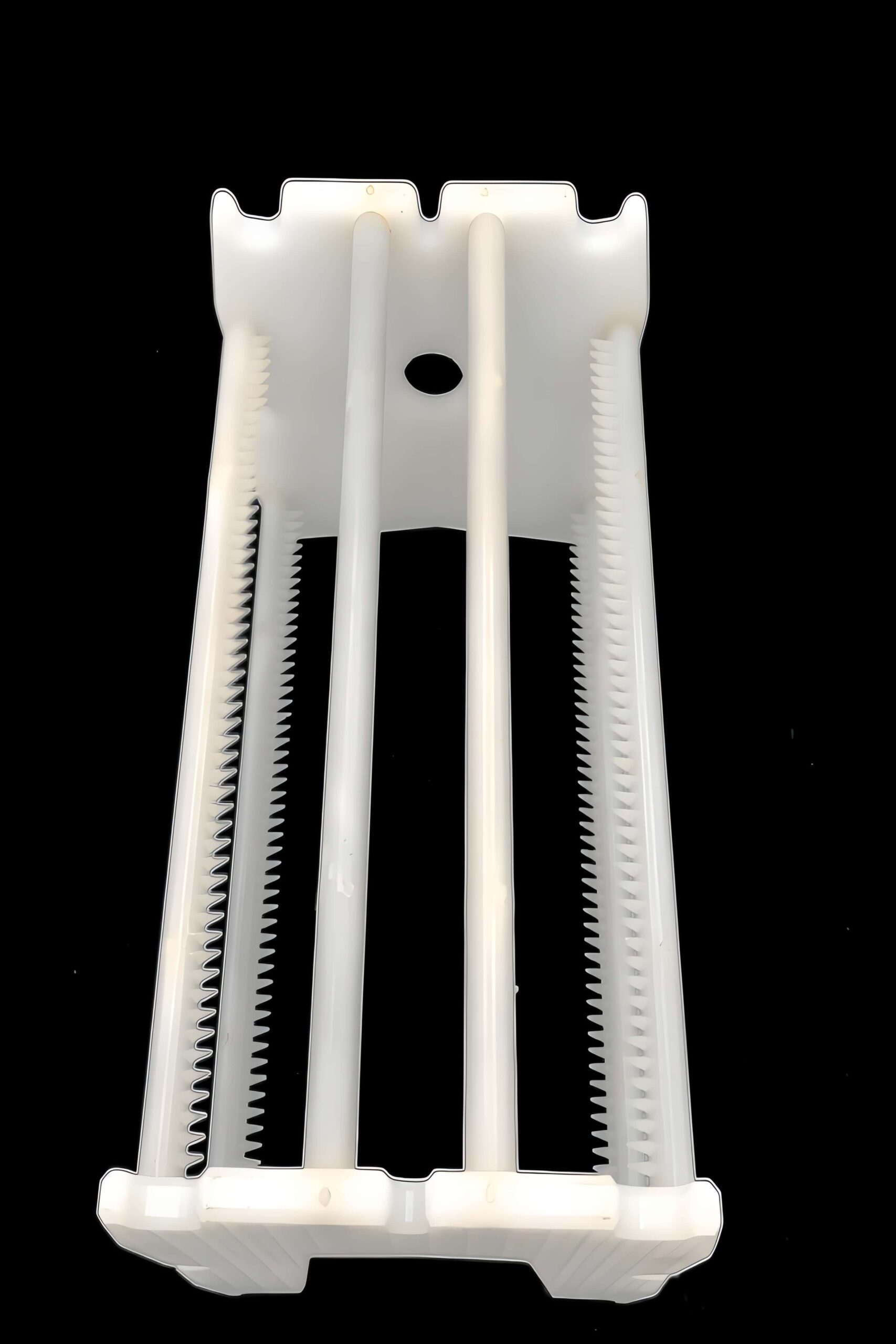

| Wafer Carriers | 99.99% purity | Ra ≤ 0.2 μm |
| Chemical Tanks | 99.9% purity | Ra ≤ 0.4 μm |
| Process Chambers | 99.99% purity | Ra ≤ 0.3 μm |
| Fluid Manifolds | 99.9% purity | Ra ≤ 0.5 μm |
| Valve Seats | 99.99% purity | Ra ≤ 0.1 μm |
| Extractable Ions | ≤ 5 ppb | Ultra-clean processing |
PVDF Semiconductor Applications
- Wafer processing equipment and handling systems
- Chemical mechanical planarization (CMP) equipment
- Wet etching and cleaning process chambers
- Chemical delivery and distribution systems
- Photoresist coating and development equipment
- Ion implantation and diffusion furnace components
Purity & Cleanliness Standards of PVDF Injection Molding
SEMI Standards
Compliant with SEMI F57 for semiconductor materials
Cleanroom Processing
Manufactured in ISO Class 7 cleanroom environment
Particle Control
≤0.5 μm particle size, <100 particles/cm²
Trace Metal Analysis
ICP-MS analysis for metallic impurities

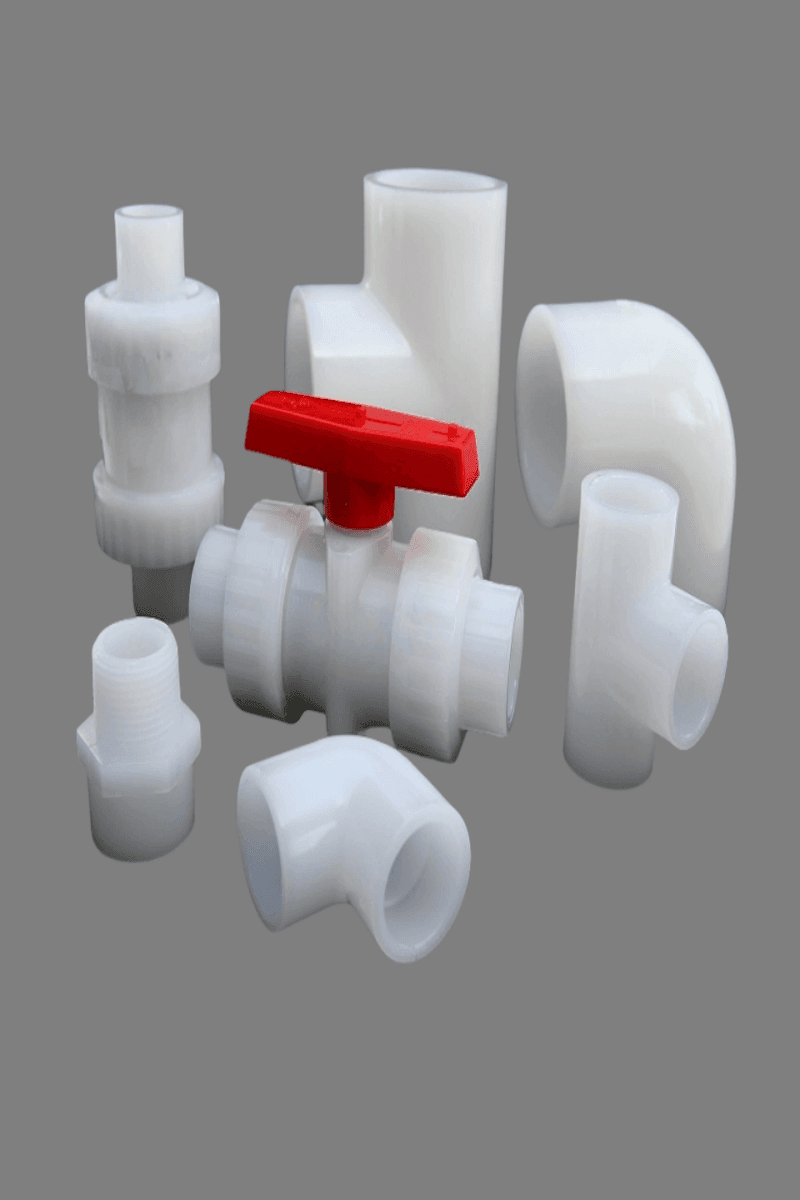

PVDF Injection Molding 3: PVDF Pipe Fittings & PVDF Connection Components
Comprehensive range of PVDF pipe fittings including PVDF elbows, PVDF tees, PVDF reducers, PVDF unions, and custom PVDF connection components. Manufactured through precision injection molding and machining for reliable, leak-free connections in chemical processing systems.
PVDF Pipe Fittings Specifications
| Fitting Type | Size Range | Connection Type |
|---|---|---|
| Elbows (90°, 45°) | 1/4" - 6" NPT/BSP | Threaded, Socket, Flanged |
| Tees & Crosses | 1/4" - 4" NPT/BSP | Threaded, Socket |
| Reducers | 1/4" - 6" combinations | Threaded, Socket |
| Unions & Couplings | 1/4" - 4" NPT/BSP | Threaded, Compression |
| Caps & Plugs | 1/4" - 6" NPT/BSP | Threaded, Socket |
| Working Pressure | Up to 16 bar | At 20°C |
PVDF Pipe Fitting Applications
- Chemical processing and transfer systems
- Water treatment and purification plants
- Pharmaceutical and biotech piping systems
- Laboratory and analytical equipment connections
- Electroplating and metal finishing systems
- Food and beverage processing equipment
Available Connection Types of PVDF Pipe Fitting

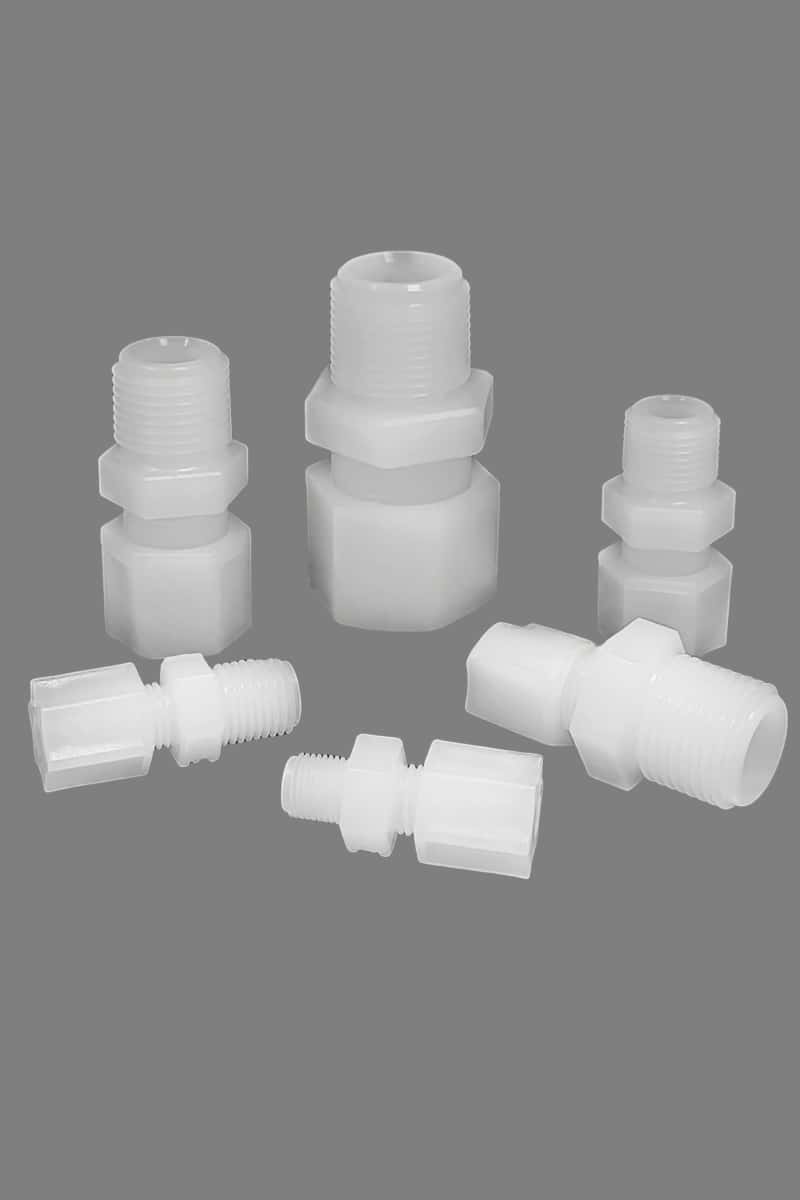

Threaded Connections
NPT, BSP, Metric threads available
Socket Welding
Smooth bore for optimal flow characteristics
Flanged Connections
ANSI, DIN, JIS flange standards
Compression Fittings
Quick assembly without welding

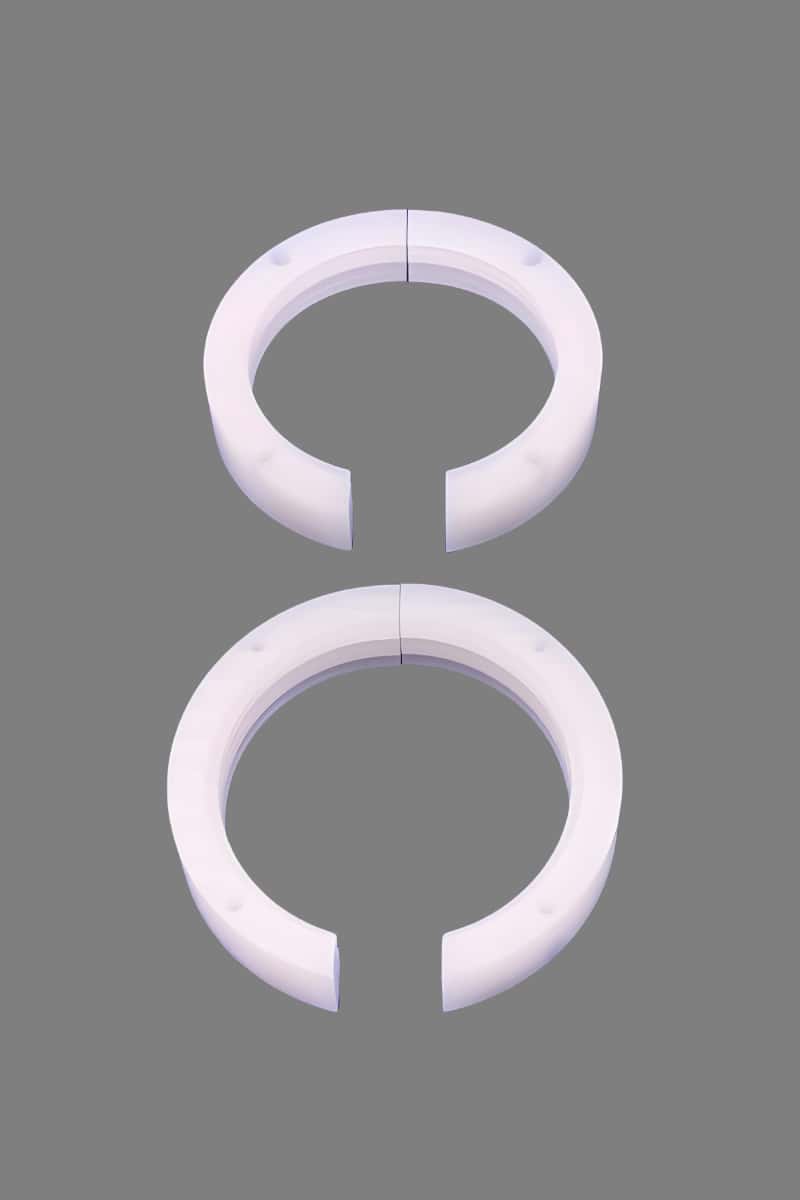

PVDF Injection Molding 4: PVDF Flange Gaskets & PVDF Sealing Components
High-performance PVDF flange gaskets and PVDF sealing components are typical PVDF injection molding parts which are manufactured through precision molding and machining. Our gaskets provide reliable sealing for chemical processing equipment, offering excellent chemical resistance and long-term durability.
PVDF Flange Gasket Specifications
| Gasket Type | Size Range | Thickness |
|---|---|---|
| Full Face Gaskets | DN15 - DN600 | 1.5mm - 6mm |
| Raised Face Gaskets | DN15 - DN400 | 1.5mm - 3mm |
| RTJ Gaskets | DN15 - DN300 | Custom profiles |
| O-Rings | AS568 standard sizes | 1.5mm - 8mm cross-section |
| Custom Seals | Per customer drawing | 0.5mm - 25mm |
| Operating Pressure | Up to 40 bar | Temperature: -40°C to +150°C |
PVDF Gasket Applications
- Chemical reactor and vessel sealing
- Pump and valve flange connections
- Heat exchanger and condenser sealing
- Pipeline and piping system connections
- Tank and container sealing applications
- Pharmaceutical equipment sealing

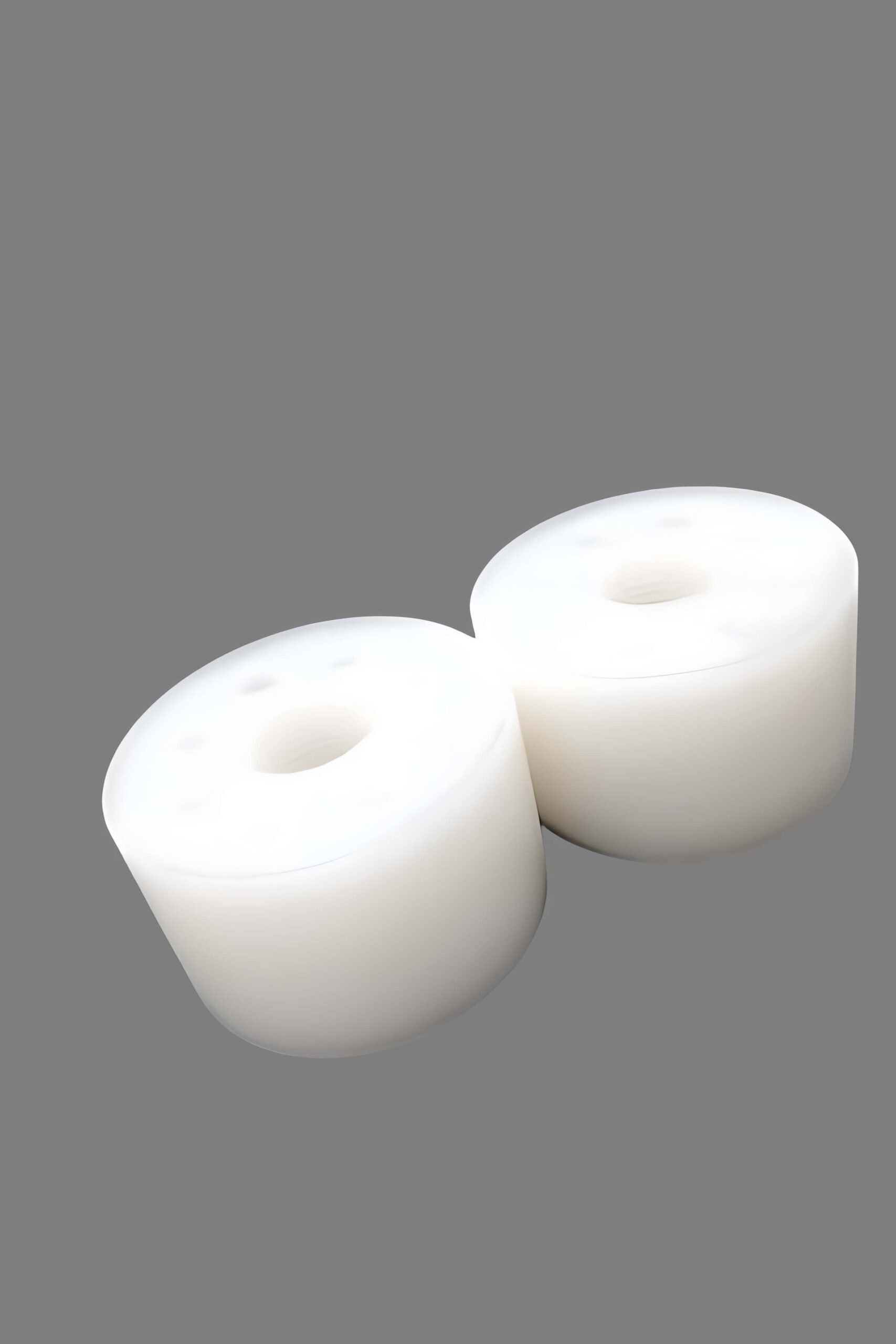

PVDF Injection Molding 5: PVDF Insulation Terminals & PVDF Electrical Components
Precision-molded PVDF insulation terminals and PVDF electrical components for high-voltage applications are our main PVDF injection molding service. Our products offer excellent dielectric properties, chemical resistance, and thermal stability for demanding electrical and electronic applications.
PVDF Insulation Terminal Specifications
| Component Type | Voltage Rating | Temperature Range |
|---|---|---|
| Terminal Blocks | Up to 10kV | -40°C to +150°C |
| Insulators | Up to 35kV | -40°C to +150°C |
| Bushings | Up to 25kV | -40°C to +150°C |
| Spacers | Up to 15kV | -40°C to +150°C |
| Dielectric Strength | ≥20 kV/mm | ASTM D149 |
| Volume Resistivity | ≥10¹⁴ Ω·cm | ASTM D257 |
PVDF Electrical Applications
- High-voltage switchgear and distribution equipment
- Power transmission and substation components
- Industrial motor and generator insulation
- Chemical processing electrical equipment
- Marine and offshore electrical systems
- Renewable energy equipment insulation
Key PVDF Electrical Properties
High Dielectric Strength
Excellent insulation performance up to 35kV
Low Dielectric Loss
Minimal energy loss in high-frequency applications
Arc Resistance
Superior resistance to electrical tracking
UV Stability
Maintains properties under UV exposure
Advanced Manufacturing Capabilities of PVDF injection molding
Our state-of-the-art manufacturing facility combines advanced injection molding, compression molding, and precision CNC machining to deliver high-quality PVDF components with exceptional accuracy and consistency.
PVDF Parts Injection Molding
High-precision injection molding with shot sizes from 50g to 5000g
- Clamping force: 80-1500 tons
- Tolerance: ±0.05mm
- Complex geometries capability

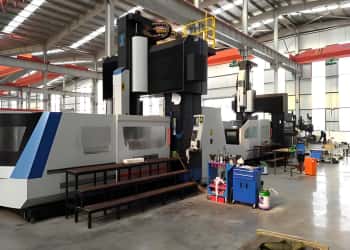

PVDF Parts Compression Molding
Large-part compression molding for complex shapes and thick sections
- Press capacity: 200-2000 tons
- Part size: up to 1000mm
- Uniform density distribution
PVDF Parts CNC Machining
Multi-axis CNC machining for precision components and finishing
- 5-axis machining centers
- Tolerance: ±0.02mm
- Surface finish: Ra 0.1μm
PVDF Parts Quality Control
Comprehensive testing and inspection for all manufactured parts
- CMM dimensional inspection
- Material property testing
- Chemical resistance validation
PVDF Custom Design & PVDF Engineering Services
Our experienced engineering team provides PVDF injection molding services for custom PVDF components, from initial concept to production-ready parts.
PVDF Parts Design Consultation
Expert guidance on material selection, design optimization, and manufacturing feasibility
PVDF Parts 3D Modeling & Simulation
Advanced CAD modeling and finite element analysis for optimal part design
PVDF Parts Prototype Development
Rapid prototyping and testing to validate design concepts before production
PVDF Parts Tooling Design
Custom mold and tooling design for efficient and cost-effective production
PVDF Parts Process Optimization
Manufacturing process development and optimization for quality and efficiency
PVDF Parts Testing & Validation
Comprehensive testing protocols to ensure part performance and reliability
Quality Standards & Certifications of PVDF Injection Molding
Our PVDF molded parts and PVDF machined parts meet the highest international quality standards and industry-specific certifications for various applications.
ISO 9001:2015
Quality management system ensuring consistent manufacturing processes
FDA Compliance
Food contact approved materials meeting FDA 21 CFR 177.2600
SEMI Standards
Semiconductor industry compliance for ultra-pure applications
UL Listed
Electrical component safety certification for insulation applications
